560 Milliohm Meter – EV/hybrid stator winding resistance tester

AES#:
esi-560

$395.50
Qty:

California Residents: Proposition 65 Warning



Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)

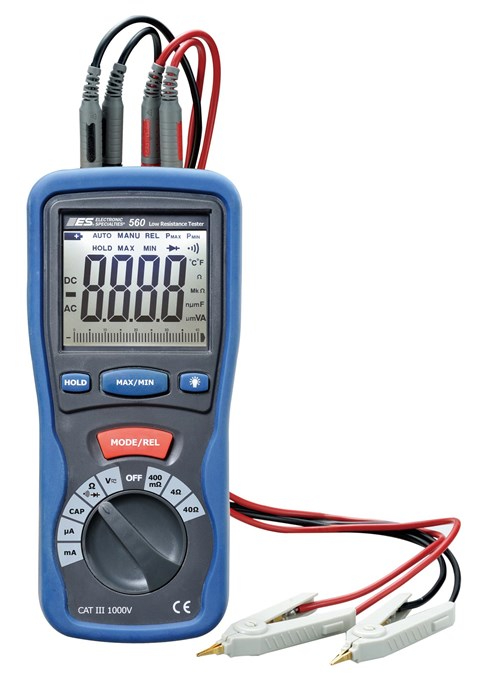

The ESI 560 checks Hybrid and EV stator windings for inconsistent or out of range resistance which leads to drivability problems. Using a milliohm meter is a critical diagnostic procedure for ensuring the integrity, efficiency, and reliability of the electric motor's winding. In three phase stators, all phases should exhibit nearly identical resistance values. This is one of the higher failure rates in electric motors and 560 can help you diagnose it.

The 560 reads very low ohms accurately, using the supplied Kelvin test leads. Low Ohm resolution is 0.1 milliohm, or .00001 Ohm. Unit is also full CATIII DVOM with Volts, Ohms, Capacitance, and Milliamps capabilities with Min/Max.  Also measures Diodes and has Continuity beep.

Features:
- Meets IEC10101, CATIIII 1000V
- Large Display with Whit LED Backlighting
- Min/Max Capture of High/Low Readings
- Over Range indication

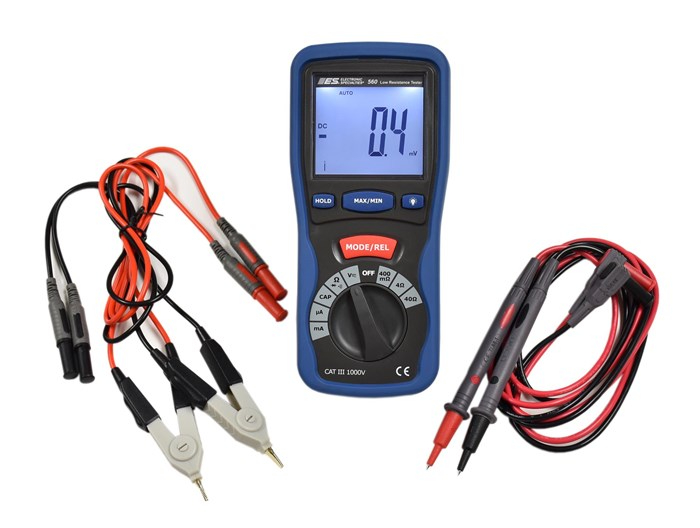

Contents:
- (6) AA Batteries
- Kelvin Test Leads
- Standard Test Leads
- Blow Mold Case
- ESI 560



Specifications  Range Resolution
Low Resistance  0-40 Ohms 0.1 Milliohms
Resistance 0-40 MegOhms 0.1 Ohms
Voltage DC 0-1000V 0.1mV
Voltage AC 0-750V 0.1mV
AC/DC Current 0-400mA 0.1uA
Capacitance 0-40mF 1pF
Continuity Test Audible Beep ≤40 Ohm
