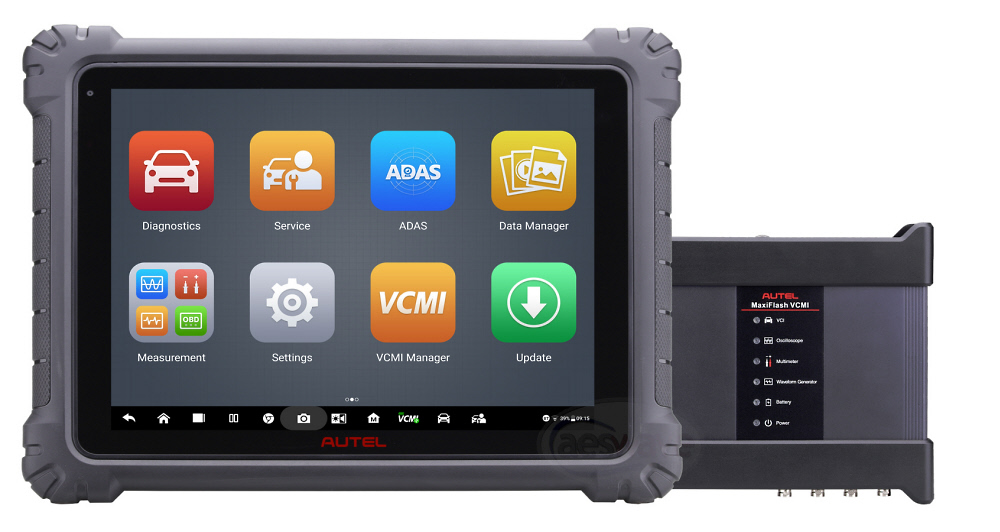

This bundle includes the Autel MaxiSys Ultra with a 1-yr subscription, a MV400 with 5.5mm camera head, Autel BT506 Battery Tester, and a Total Care Program card for 1-yr subscription extension.

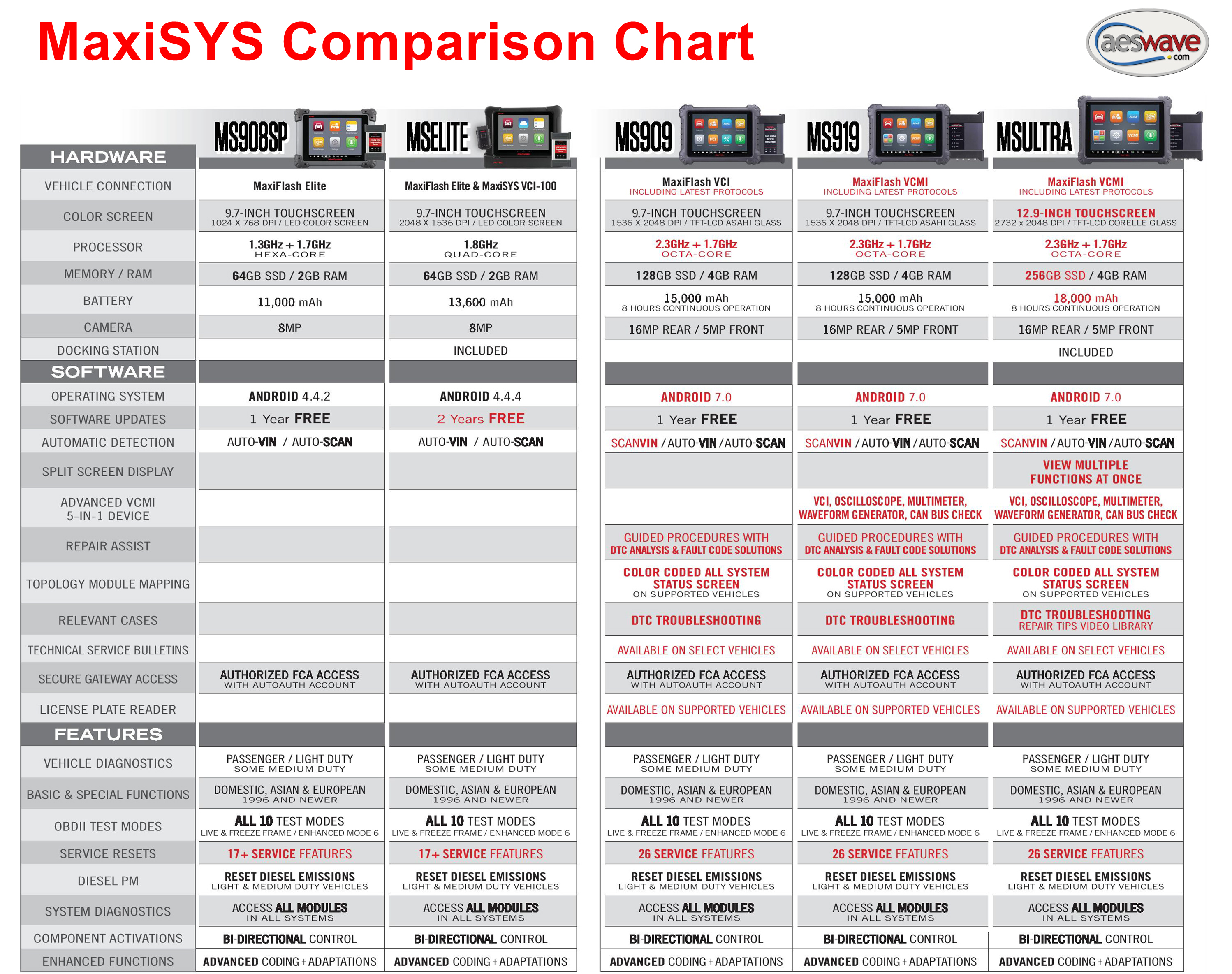

How the Autel Ultra differs from the MS909:
- Larger screen: 12.9-inch touchscreen
- More memory: 256GB Memory
- VCI includes oscilloscope, waveform generator, multimeter, CAN Bus tester
- Split screen view to view two different functions
- Faster processor
NOTE: Does not include early OBD-II adapters!
Features

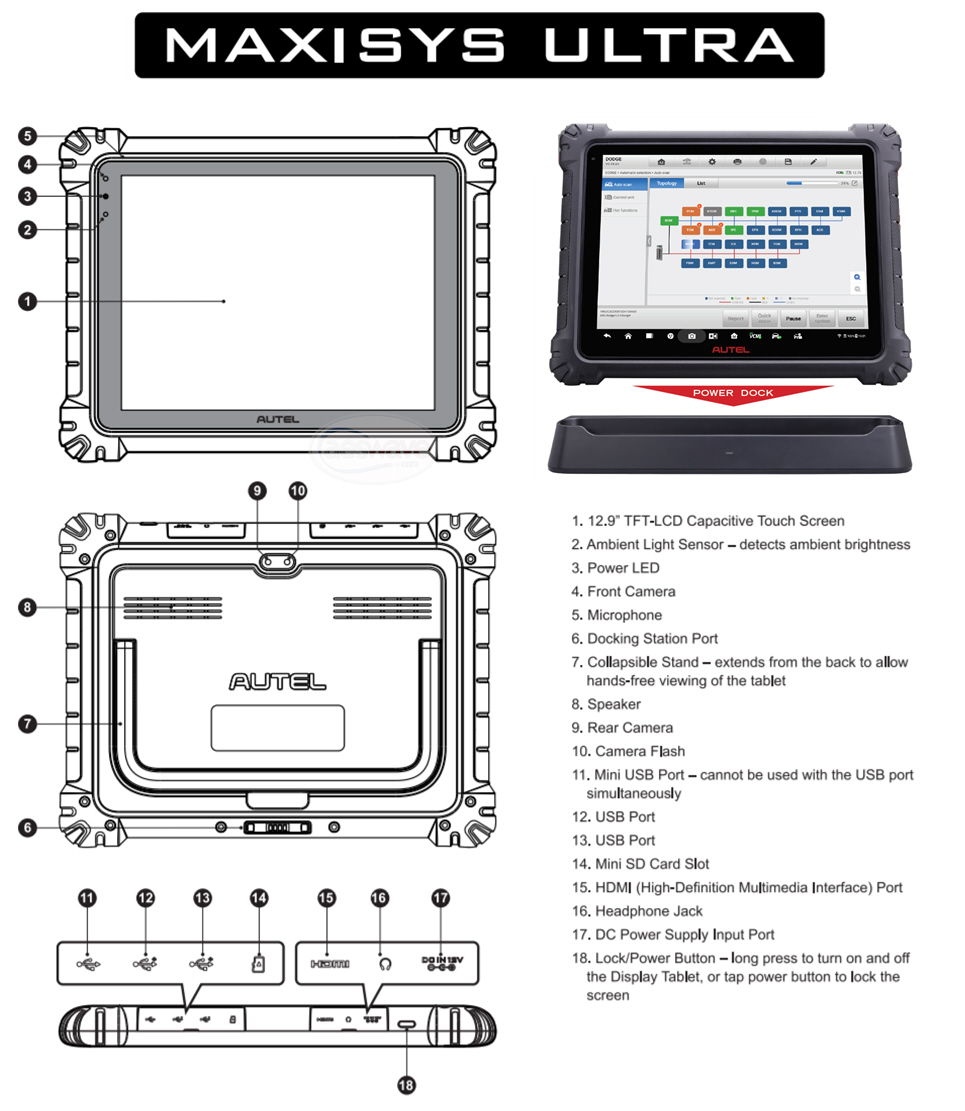

- Large 12.9’’ Touchscreen (2732 x 2048)
- Android 7.0 OS
- 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory

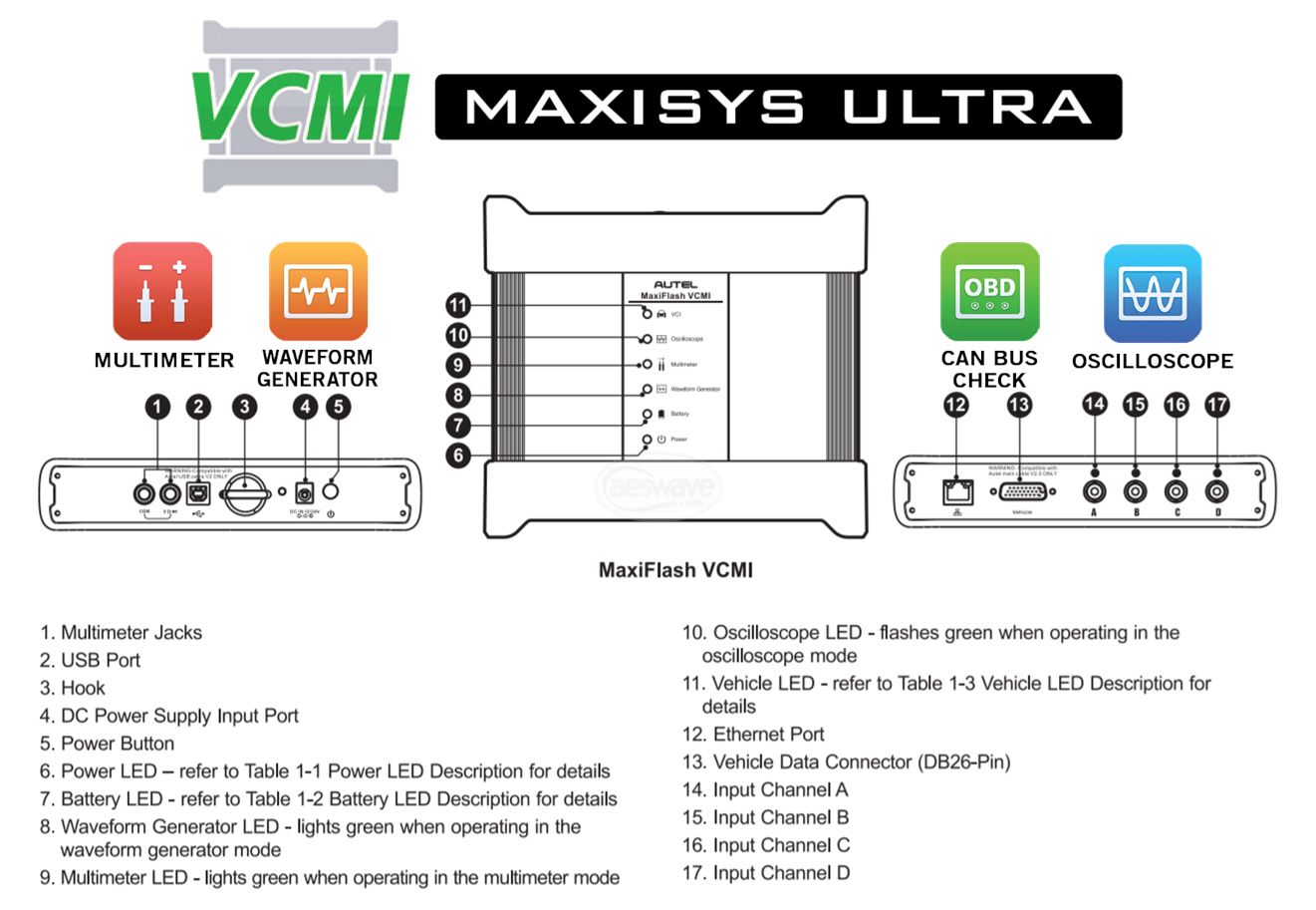

- Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS tester
- Oscilloscope Preset Guided & Component Tests / Waveform Library
- New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
- Split Screen Multi-Application Function / Dual Wi-Fi Connection
- Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
- Relevant Cases: DTC Troubleshooting / Repair Tips Video Library
- Repair Assist: Guided Procedures with DTC Analysis & Fault Code Solutions
- Code-Related Technical Service Bulletins (on select vehicles)
- License Plate Reader
- ScanVIN: Barcode or Text Recognition with Camera
- Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account (sold separately)

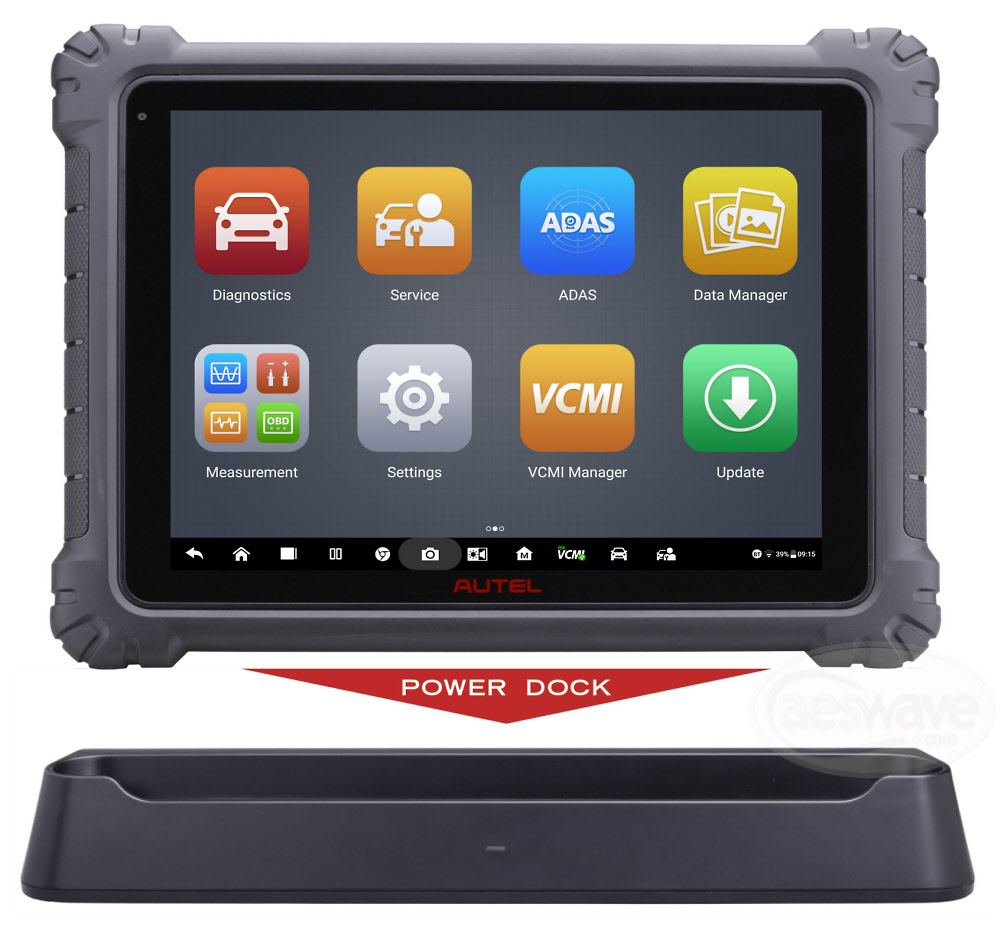

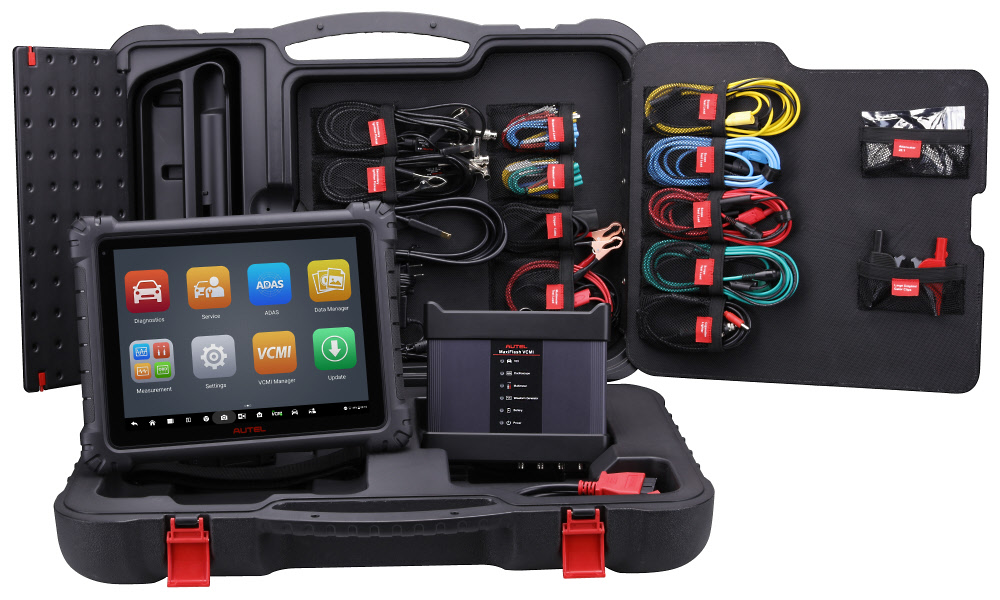

- Includes Docking Station, Cables, Scope Connectors, Carrying Case
- Enhanced Diagnostic Reports: PreSCAN & PostSCAN
- 15000mAh – 3.8V lithium-polymer battery - 8hrs Continuous Use
- 16MP Rear Camera Autofocus with Flashlight & 5MP Front Camera
- 1-year update subscription and warranty (Both can be renewed)

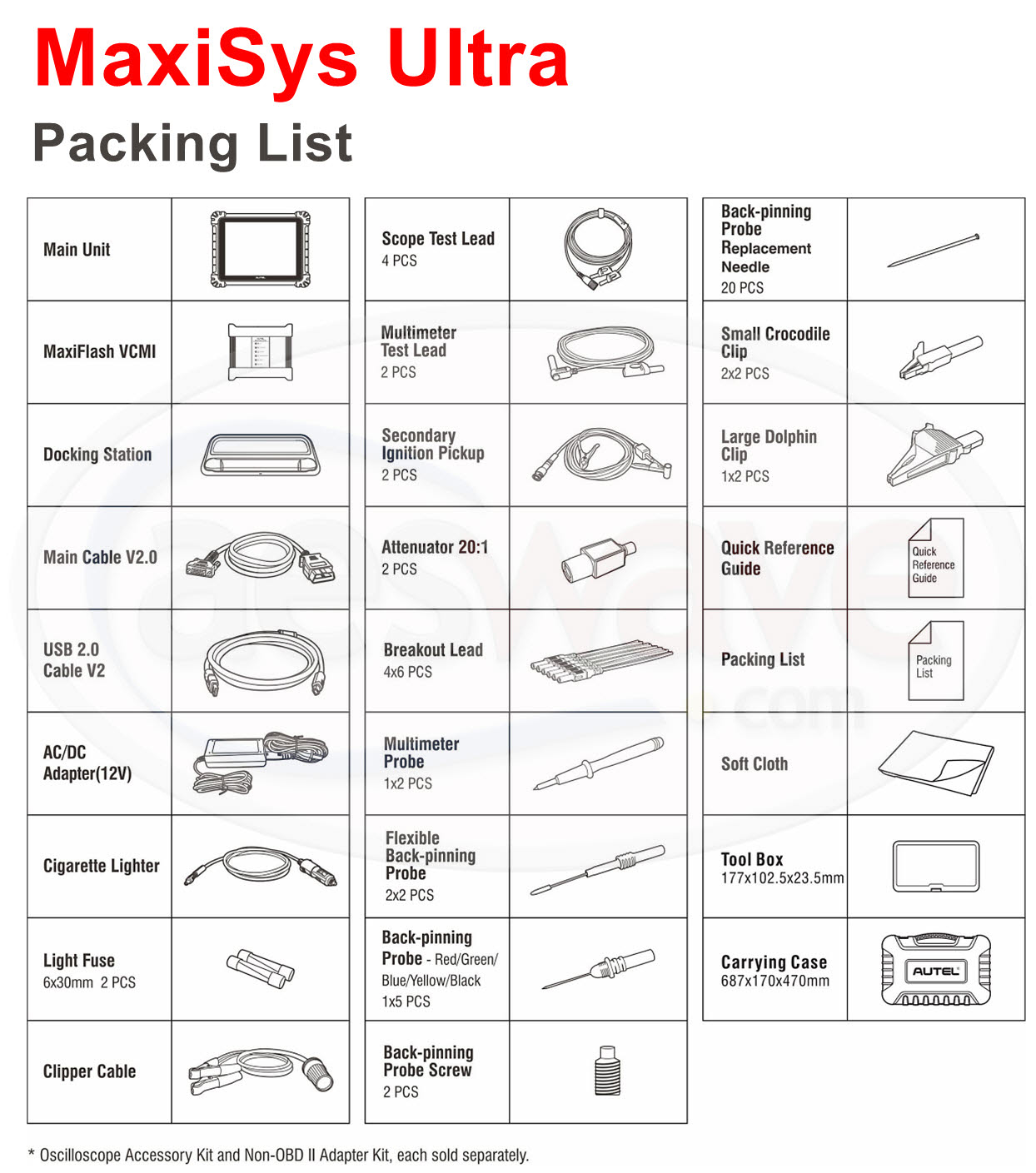

Contents
Why buy from AESwave...
Since 2009, AESwave has been an authorized dealer for Autel USA providing technical support, account setup, and warranty assistance via phone, email, or remote login.
| Specifications |
| OS |
Android 7.0 OS |
| Processor |
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory |
4GB RAM & 256GB On-board Memory |
| Display |
12.9 inch TFT-LCD with 2732 x 2048 resolution & capacitive touchscreen |
| Connectivity |
WiFi x2 (802.11 a/b/g/n/ac 2x2 MIMO) |
| |
BT v.2.1 + EDR |
| |
GPS |
| |
USB 2.0 (Two USB HOST Type A, one USB mini device) |
| |
HDMI 2.0 |
| |
SD Card (Supports up to 256GB) |
| Camera |
Rear: 16 Megapixel, Autofocus with Flashlight |
| |
Front: 5 Megapixel |
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio |
Microphone |
| |
Dual Speakers |
| |
3-Band 3.5 mm stereo/standard headset jack |
| Battery |
18000mAh 3.8 V lithium-polymer battery |
| Charging |
Charging via 12 V AC/DC power supply |
| Input Voltage |
12V/3A Adapter |
| Operating Temp. |
0 to 50°C (32 to 122°F) |
| Storage Temperature |
-20 to 60°C (-4 to 140°F) |
| Dimensions |
366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") |
| Weight |
2.18kg (4.81 lb.) |
| Protocols |
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
