Differential Probe: x10/x100 25MHz 700V CATIII

AES#:
pt-TA041
UPC:
2025.01.06

$479.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)

Use the Active Differential Probe Model TA041 to view live measurements from any pair of windings on a 3-phase system, such as those used in hybrid vehicles.

To view all 3 pairs of windings at the same time on a 3-phase, you need 3 differential probes and a scope with 3 or more channels.

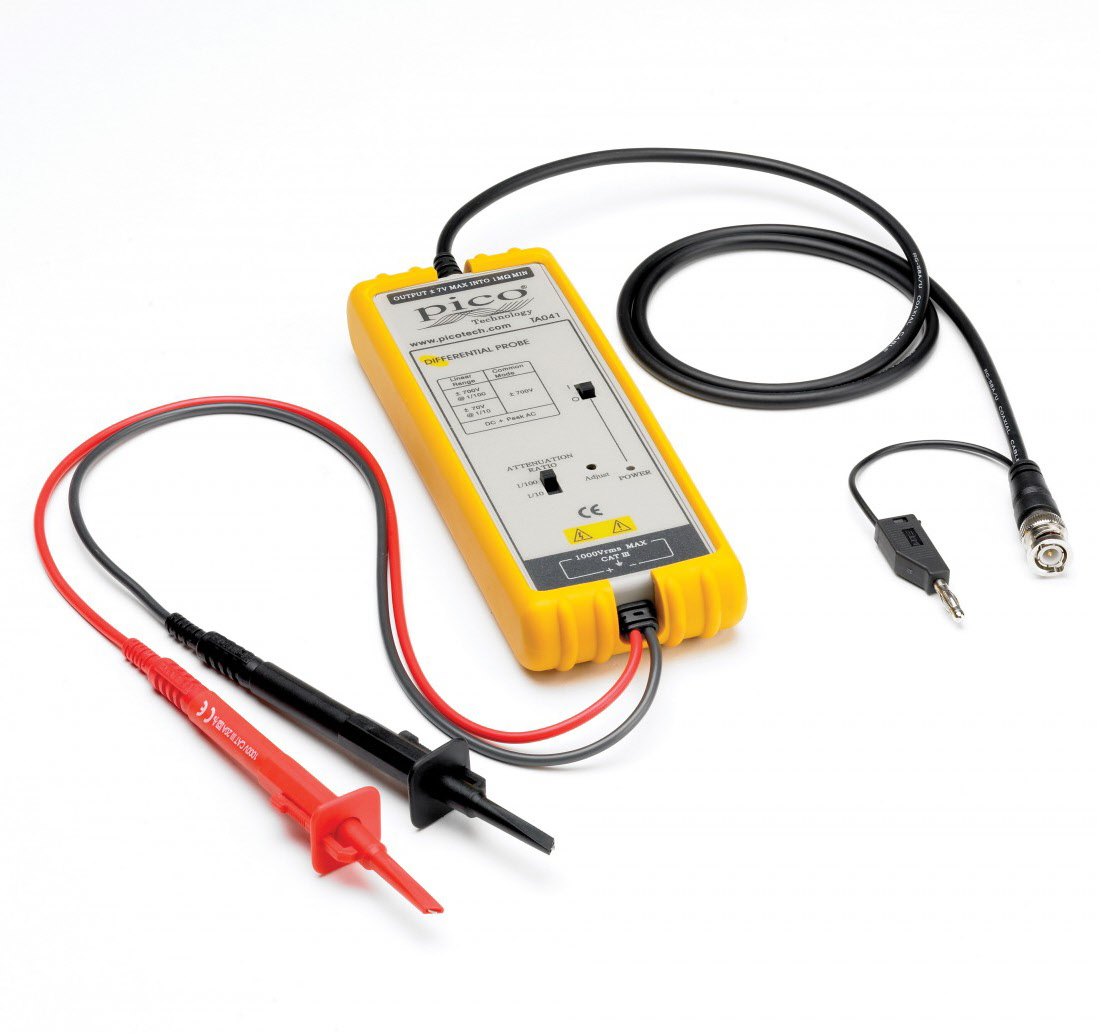

The Active Differential Probe Model pt-TA041 is designed to safely analyze floating signals. The built in amplifier scales and converts the high voltage differential input to a low, voltage single-ended BNC output, compatible with any oscilloscope.

Model TA041 includes:
- Differential Probe Model TA041 - 10X/100X, 25 MHz, 700V
- Black Storage Box
- Red & Black Sprung Hooks
- Calibration Certificate
- AA Batteries (4)
- 9VDC Adapter



Specifications
Attenuation ranges 10:1 / 100:1
Differential Voltage Range ±70 V (DC + Peak AC)
or 70 V RMS (1/10)
±700 V (DC + Peak AC)
or 700 V RMS (1/100)
Common Mode Voltage Range ±700 V (DC + Peak AC)
or 700 V RMS (1/10 and 1/100)
Absolute Maximum Voltage (Differential or Common-Mode) ±1400 V (DC + Peak AC)
or 1000 V RMS CAT III (1/10 and 1/100)
Bandwidth DC to 25 MHz (-3 dB)
Accuracy ± 2%
Rise time 14 ns
Input impedance 4 MΩ / 5.5 pF each side to ground
Power requirements 4 x AA cells
or 6 V / 60 mA DC mains adapter
Length of Input Leads 45 cm
Length of BNC Lead 95 cm
