> Cool Tools > MaxiVideo MV105 (5.5mm Camera Head)


mv105 connected to the MaxiSYS
mv105 connected to the ms905


MaxiVideo MV105 (5.5mm Camera Head)

AES#:
ATL-MV105

$35.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)

The MV105 digital inspection camera is designed to work with MaxiSys series products or even PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

The power of MaxiVideo inspection camera is directly supplied by the USB port, and no external power source is needed.

White LED lights to illuminate the inspection areas.
Small diameter allows it to be used in the tight spaces.
Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
Powerful and perfect for inspecting most spark plug holes.
Super bright LED and high resolution provide crystal clear images.

Contents

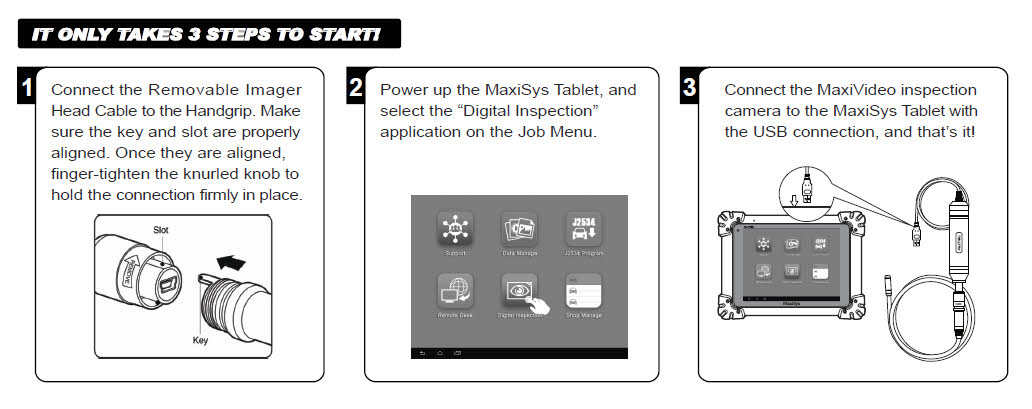

- MV105 unit with Removable Imager Head Cable, Handgrip, USB Cable
Magnet – picks up small metal objects, such as dropped rings or screws
- Mirror – to look around corners and see the unreachable areas

Specifications

Optimal Viewing Distance   MV105:3/8’’ to 12’’ (0.95cm to 30cm)
Image Capture   MV105 (320 x 240)
Image Head   MV105: 5.5mm (0.22’’) MV108: 8.5mm (0.33’’)
Operating Temperature   Main Unit: 0°C to 50°C (32°F to 122°F)
Cable: -10°C to 70°C (14°F to 158°F)
Storage Temperature   -20°C to 75°C (-4°F to 167°F)
Waterproof   Imager head and cable to 1m(3’)
Weight   0.3kg with 8.5mm diameter imager head
0.2kg with 5.5mm diameter imager head
Compliance   FCC (EMC), CE (EMC and LVD)
