Piggyback the grounds when using both channels

Test Drive Test Leads for the Snap-on VantagePro

AES#:
03-760-Vpro

$69.00
Qty:

California Residents: Proposition 65 Warning



Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description

Clean it up with AES' ST3 Test Lead Kit!Backorder! We hope to resume shipping in late August.

Use these 10-ft shielded leads with 2-channels scopes such as the MODIS™ Edge, MODIS™ Ultra, VANTAGE® Ultra, and the VANTAGE® Pro.

AES ST3 Test Leads are designed to withstand automotive environments:
- Shielded from tip-to-tip for maximum noise immunity
- Heat resistant
- Flexible
- Small enough to easily pass under hoods and through windows for road testing.

Each lead is constructed using quality shielded cable and connectors. They are insulation and resistance tested to ensure that they are of the highest possible quality. Each test lead features high quality banana-plugs. The test end features shrouded banana-plugs that allow the use of a wide variety of probes such as pin tips, alligators, back-pin probes, piercing probes and more.

Test Lead Configuration
- Connection to scope: The test lead is configured with either BNC or Banana-plugs for connecting to your scope (tell us which connector you need when placing your order). For scopes with banana plug inputs, the lead's ground banana plug is stackable to allowing other channels to access the scope's ground when using multiple channels.
- Connection to vehicle: Each test lead terminates to 4mm Banana-plugs: one for signal and one for ground conenction.
- Test lead connection to accessories: all the gators, probes, and clips sold at AESwave will connect to the test lead.

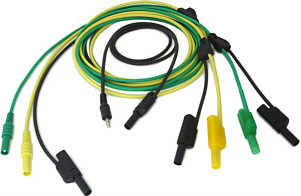

Package Contents
Set of two 10-ft long shielded test leads:
1 @ Yellow with ground-to-instrument and ground-to-vehicle
1 @ Green with ground-to-instrument and removeable Ground Extension

Characteristics of the ST3 Test Drive Test Leads for the VantagePRO  (AES# 03-760-Vpro):
Attentuation:   1:1
Connection at Scope:   Signal: 4mm shrouded, stacking Banana-plug
  Ground: 4mm shrouded, stacking Banana-plug
Cable:   ST3, Shielded
Color:   Yellow, Green
Length:   10-ft
Connection at vehicle:    Signal: 4mm shrouded Banana-plug
  Ground: 4mm shrouded, stacking Banana-plug
