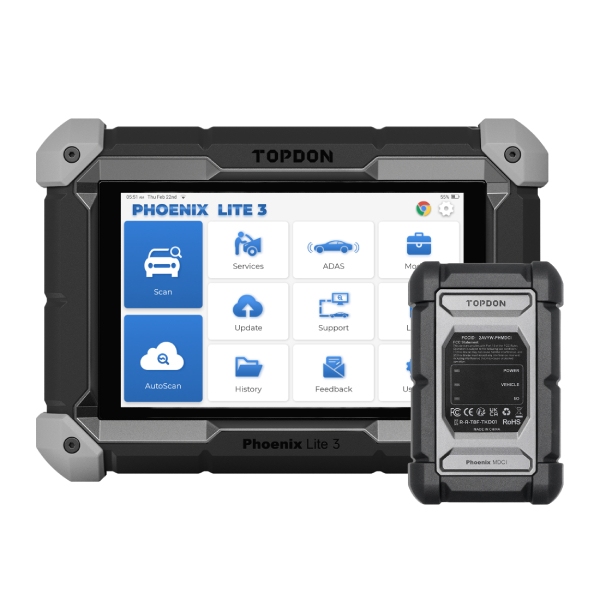

TOPDON’s Phoenix Lite 3 is the latest upgrade in the Phoenix Lite scan tool series. In addition to the usual Live Data, Bidirectional Controls, and System Functions, the Lite 3 includes Topology mapping and is compatible with Topdon's ADAS frame system (sold separately). The VCI is compatible with CAN FD protocol. 2 years of updates and warranty are included for free with the Phoenix Lite 3.
Features
- Topology Mapping
- CAN-FD protocol supported (2020-now GM & Chrysler Models).
- FCA gateway access with AuthAuth (sold separately)
- Coverage for 168+ vehicle mmakes
- 35 maintenance functions including Add/Replace Key Fobs, Battery Sensor Module learning, and Tire Pressure Sensors Learning.
- Bi-Directional Controls
- Effortless Diagnostics Anywhere
- AutoVin
- VAG guided functions
- Data Reporting and Sharing
- Optional add-on tools (sold separately): ADAS, BT Mobile ProS, Oscilloscope, TC001 Thermal Imaging, Phoenix ADAS, T-Ninjia Box, and more.
Contents
• Phoenix Lite 3
• MDCI Dongle
• Battery Clamps/Cable Set
• Cigarette Lighter Cable
• Fuse (φ5*20mm)*4
• Fuse (φ6*30mm)*2
• Type-C to USB Cable
• Power Adapter
• OBDI Adapter BOX Transfer Line
• OBDII Extension Cable
• BZ-38 (BENZ)
• TA-22 (TOYOTA)
• TA-17 (TOYOTA)
• G/V-12 (GM/VAZ)
• B-20 (BMW)
• CR-6 (CHRYSLER)
• HA-3 (HONDA)
• NN-14+16 (NISSAN)
• M/H-12+16 (MITSUBISHI/HYUNDAI)
• FT-3 (FIAT)
• User Manual
• Package List
• Password Letter
Warranty and Updates
• Warranty Continues with Customer's Subscription
• 2 Years of Free Software Upgrades
Phoenix Lite 3 Specifications
- Display: LCD 8-Inches, 1280*800 Pixels
- CPU: 4-Core Processor, 2.0 GHz
- Operating System: Android 10.0
- RAM: 2G
- ROM: 64G
- Battery12600 mAh / 3.8V (tested to have up to 24h of battery life with the screen on)
- Connectivity: Bluetooth/WiFi 2.4 & 5 GHz
- Operating Voltage: 9~18V
- Storage Temperature: -20℃~60℃ (-4℉~140℉)
- Working Temperature: 0℃~50℃ (32℉~122℉)
- Product Dimensions: 258*183*50.5 mm (10.2*7.2*2 inches)
- Net Weight: 1184.5 g (2.61 lbs.)
- Multilingual Support: 24 Languages: English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian
