what else is needed with this cable to pickup the primary ignition event?
I'm assuming some kind of inductive clamp. Which one?
Status:
Open Mar 24, 2018 - 05:11 PM
1answer
Answer
Mar 26, 2018 - 05:48 AM
In addition to the lead you will need a backprobe or gator clip.
The primary ignition voltage signal is acquired by connecting the AES Primary lead to the negative post/side of the coil with a backprobe or gator clip.
Use a low current probe for primary ignition currrent.
Source: Staff
Answer this question
View More Product Details

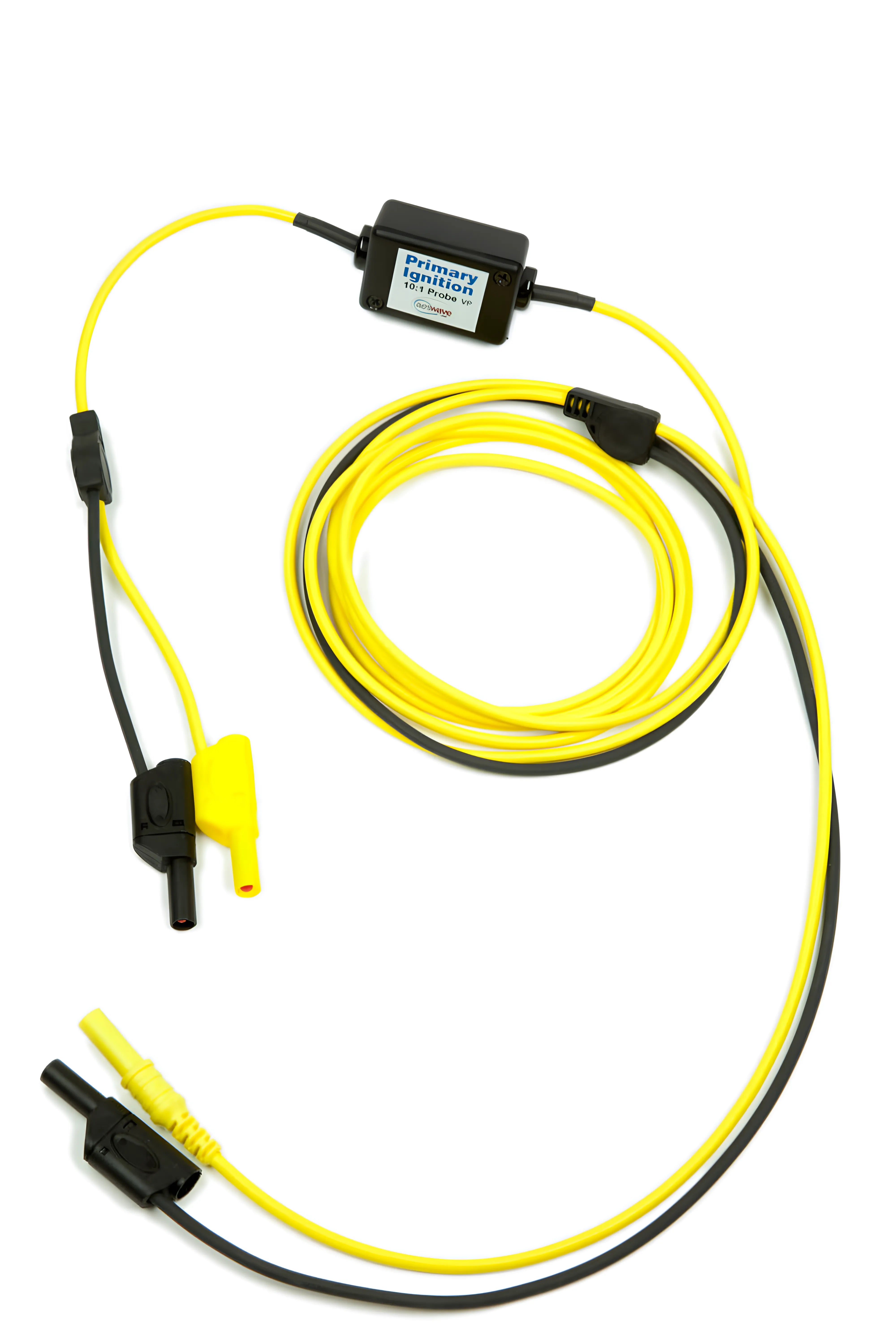

Primary Ignition Lead for Snap-on MODIS, VERUS, VantagePRO
Use the AES Primary Ignition Lead with the Vantage PRO, MODIS, and VERUS to see the primary ignition spikes that rise higher than 200 volts while maintaining the option to zoom in on essential details such as the dwell, burn time and coil oscillations.
These Snap-on scopes have a maximum d...
