AES#: CAL-76 what cable connection can be used in the test terminals on face of the tool.
The Cal 76 shows a video of checking voltage on a test terminal for the pins. I am wondering what the "port" is and what cable connection is needed to replace a missing ground to see if it will make the component work. Obviously, I mentioned ground but it could be battery positive voltage like on pin 87 if the pin 30 was missing voltage. This would show me if the component was working. I also, could jump from pin 30 to 87 and put an amp clamp on for amperage test.
Status:
Open Apr 16, 2024 - 10:45 AM
1answer
Answer
Apr 16, 2024 - 11:32 AM
The terminals are standard 4mm banana plug (unshrouded)
I would be possible to use a jump on the front terminals, but there are no specifications for how much current it can handle when doing so. It's possible a high enough current could damage the circuit board. Do so at your own risk.
Source: SA
Answer this question
View More Product Details

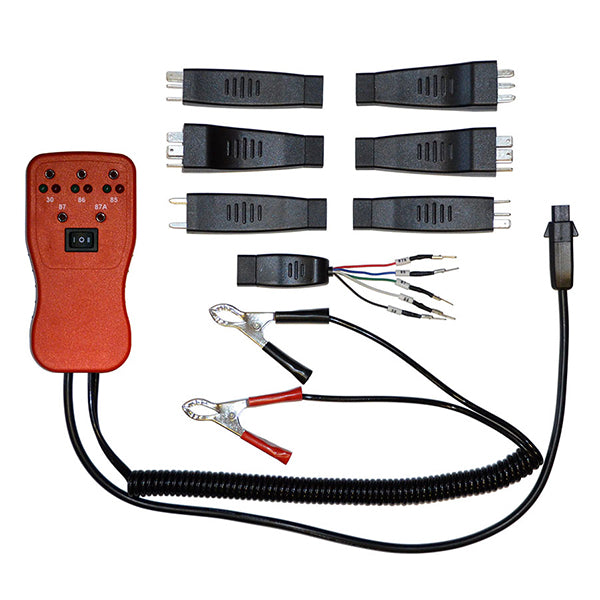

Relay Circuit Pro (CAL76)
