MA800 Mobile ADAS Frame Upgrade

The Autel MA800UPG is designed as an upgrade for MA600 owners.

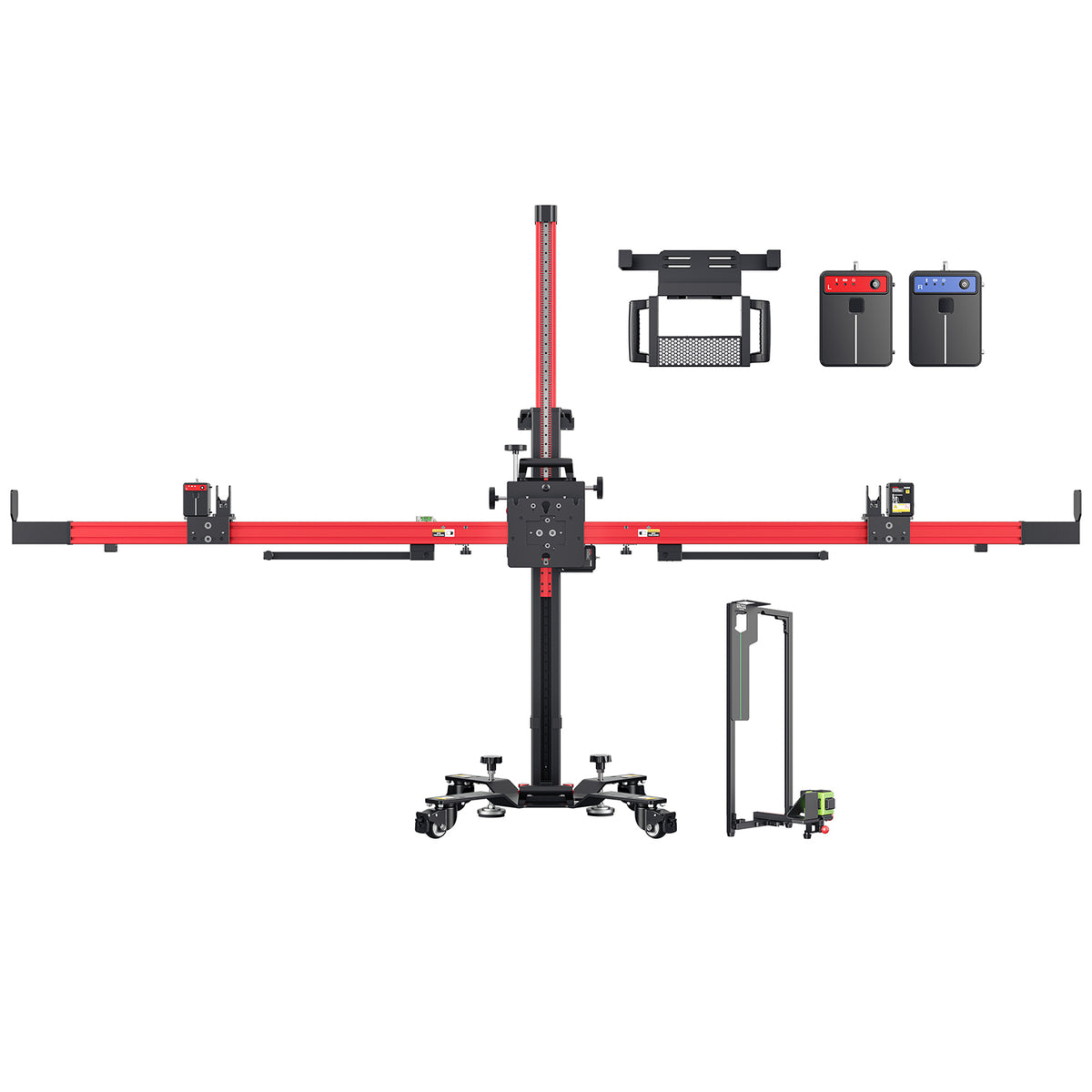

It includes the MA800 mobile calibration frame, which breaks down into four pieces for convenient transport and storage, a tablet holder, left and right positioning laser units, an alignment stand, a laser measure unit, a two-line laser for vehicle centerline identification, a second two-line laser, a laser plate, a laser-assisted reflector, two rechargeable battery packs, and a power adapter.

Compatible with existing MA600 targets and calibrators, the MA800 supports comprehensive vehicle coverage and replaces mechanical positioning with laser-guided vehicle centerline and target positioning to improve setup efficiency and accuracy. Independent pitch, roll, and yaw adjustments enable precise alignment, while setup measurements are transmitted to a compatible MaxiSYS tablet for verification against OE-specified tolerances and validated reporting.

A MaxiSYS tablet with ADAS calibration software is required.

MA800 Frame Positioning
- Laser-Guided Centerline & Target Positioning to establish vehicle centerline and position the frame and targets without plumb bobs or floor markings.
- Independent pitch, roll, and yaw controls enable fine adjustment of the frame to compensate for uneven floors, vehicle ride height, and other real-world setup variables.
- Mirror alignment provides an intuitive method for establishing the correct relationship between the vehicle and calibration frame.
- Validated Specs & Reporting with bluetooth-connected laser measurements to verify setup against OEM specifications and document the results.

MA800 Frame Mobility
- 4-piece frame designed for easy storage, disassembly, and transport
- 60-second disassembly
- Tool-free assembly
- Weight fully assembled: 86.6lbs
- Stored Height: 54”
- Floor Space: 25″W x 24”D
- Travel cases optional

Contents
- FRAME ONLY. Requires ADAS enabled tablet or tablet and upgrade card. Targets not included.
- One year limited warranty
