MA800AST Mobile All Supported ADAS Systems Calibration Pkg with MS909S2 Tablet

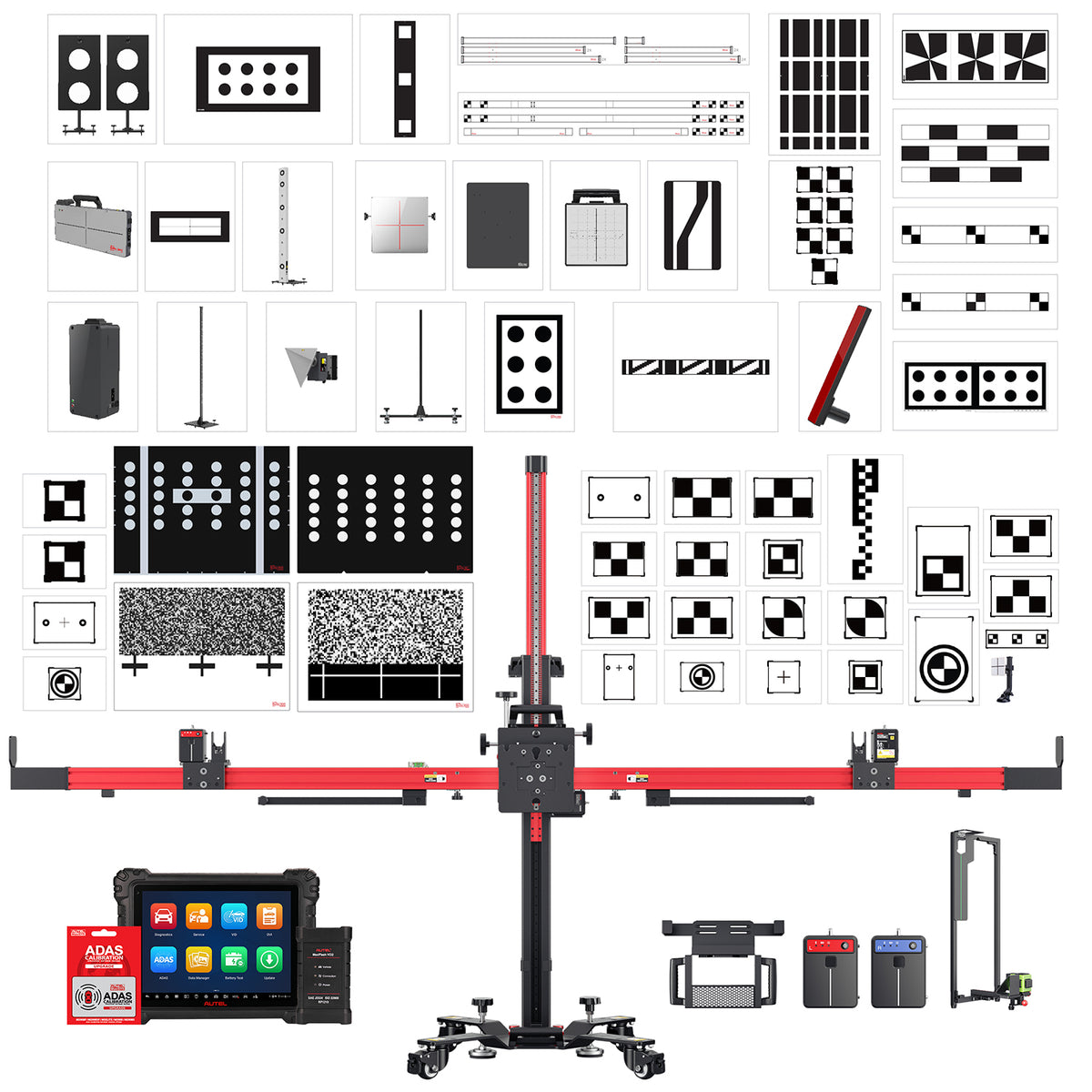

The Autel MA800AST package combines the MA800 mobile calibration system, MaxiSYS MS909S2 diagnostic tablet, and an expanded selection of targets, calibrators, and equipment to provide calibration coverage across all supported ADAS systems.

It includes the MA800 frame, which breaks down into four pieces for convenient transport and storage, a tablet holder, left and right positioning laser units, an alignment stand, a laser measure unit, a two-line laser for vehicle centerline identification, a second two-line laser, a laser plate, a laser-assisted reflector, two rechargeable battery packs, and a power adapter.

Laser-guided vehicle centerline and target positioning improves setup efficiency and accuracy, while independent pitch, roll, and yaw adjustments enable precise alignment. Setup measurements are transmitted to the tablet for verification against OE-specified tolerances and validated reporting. The expanded LDW target package supports Honda and Acura, Hyundai and Kia, Mazda, Mercedes-Benz, Mitsubishi, Nissan and Infiniti, Subaru, Toyota and Lexus, Volkswagen, Audi and Porsche, and Alfa Romeo.

Additional equipment supports Around View Monitoring (AVM), rear camera, Honda LaneWatch, Adaptive Cruise Control (ACC), Blind Spot Detection (BSD), night vision, and LiDAR calibration on applicable vehicles. A target flight case is included for small-target storage and transport.

The included ADAS calibration software upgrade card adds calibration coverage to the tablet and includes 12 months of calibration coverage updates.

MA800 Frame Positioning
- Laser-Guided Centerline & Target Positioning to establish vehicle centerline and position the frame and targets without plumb bobs or floor markings.
- Independent pitch, roll, and yaw controls enable fine adjustment of the frame to compensate for uneven floors, vehicle ride height, and other real-world setup variables.
- Mirror alignment provides an intuitive method for establishing the correct relationship between the vehicle and calibration frame.
- Validated Specs & Reporting with bluetooth-connected laser measurements to verify setup against OEM specifications and document the results.

MA800 Frame Mobility
- 4-piece frame designed for easy storage, disassembly, and transport
- 60-second disassembly
- Tool-free assembly
- Weight fully assembled: 86.6lbs
- Stored Height: 54”
- Floor Space: 25″W x 24”D
- Travel cases optional

Contents
- Frame
- All System Targets
- MS909S2 Tablet
- ADAS Card
- One year limited warranty
