Mixmaster 12-Channel Automotive Signal Mixer

(AES# pt-PP361)

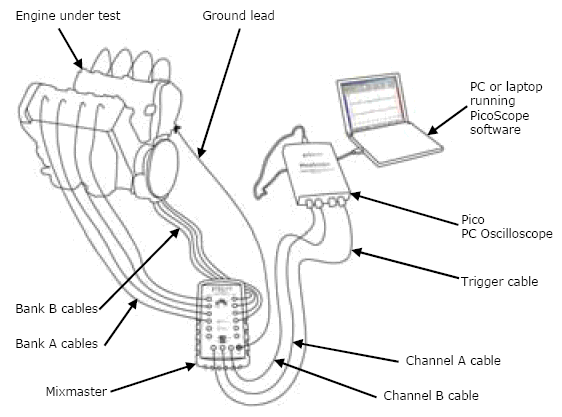

Now you can see a twelve-cylinder secondary ignition parade on your Pico Scope. Mixmaster can produce a parade display of up to twelve cylinders using a single channel of your Pico Scope. If you have a two-channel or four-channel Pico Scope the Mixmaster will also display two engine banks separately with up to six cylinders per bank.

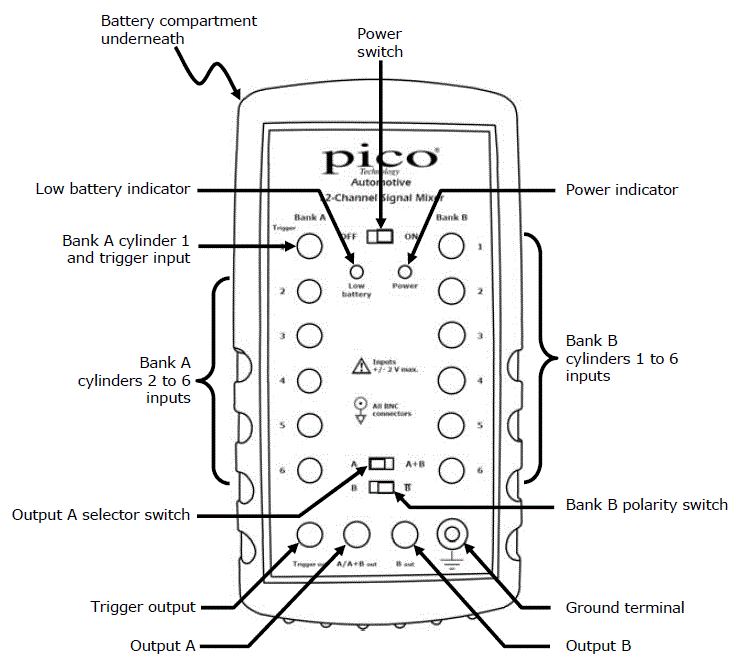

Pico Mixmaster is battery-powered, rugged and conveniently portable. It is supplied with a set of four secondary ignition leads, three BNC leads to connect to the oscilloscope, and an engine-block ground lead. It has a trigger output to help synchronise the scope to a known cylinder, and a switch to deal with negative-going wasted-spark signals. There's no software to install, and it works with PicoScope or any other automotive oscilloscope program.

Ignition parade waveforms from a wasted spark ignition system

The MixMaster separates the power and spark onto separate channels.

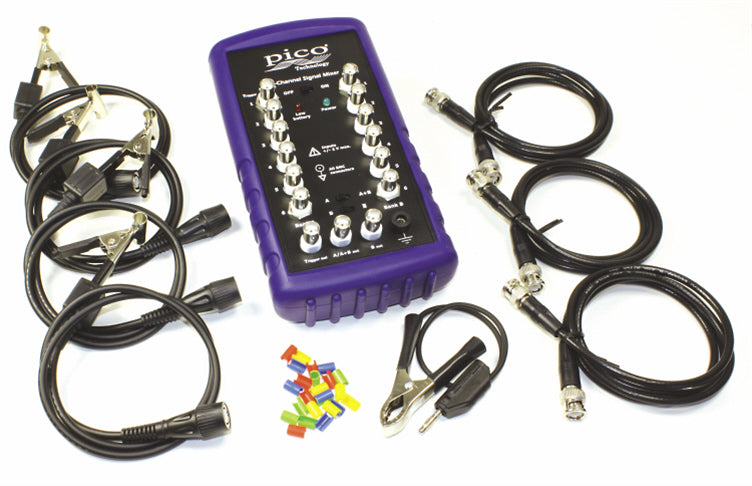

MixMaster Contents
• Pico Mixmaster base unit with holster boot
• Ground Lead (14-1/2 inches long)
• 4 Secondary Pickup leads (35 inches long) *
• 3 BNC leads (4-ft long) to connect to scope module
• User Guide

* You can purchase extra sets of secondary pickup leads for use with up to 12
channels. Click here for set of 4 leads!

System Requirements
The Pico Mixmaster is designed to operate with any Pico Scope.
