MaxiTPMS TBE100 Tire and Brake Examiner

AES#:
atl-TBE100
UPC:
849438006785
MSRP:
$395.00
Price:
$349.00
Your Savings:
$46.00 (11.65%)
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Comparison
Specifications

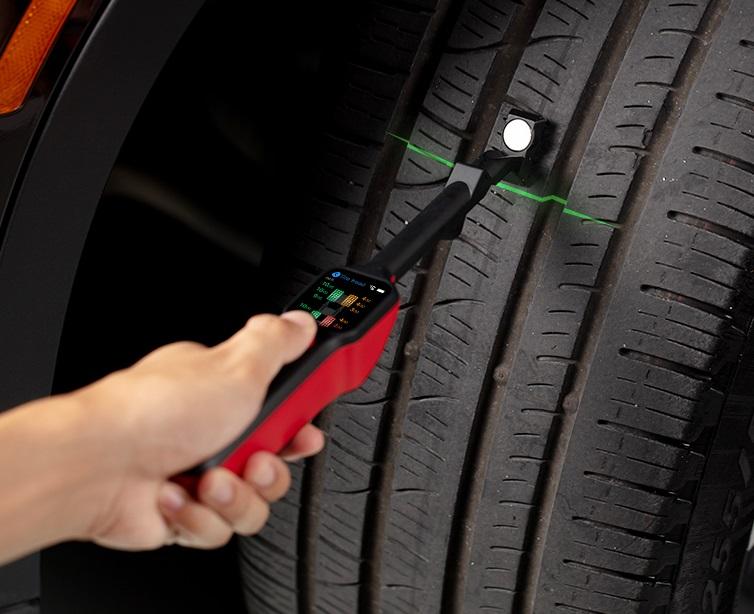

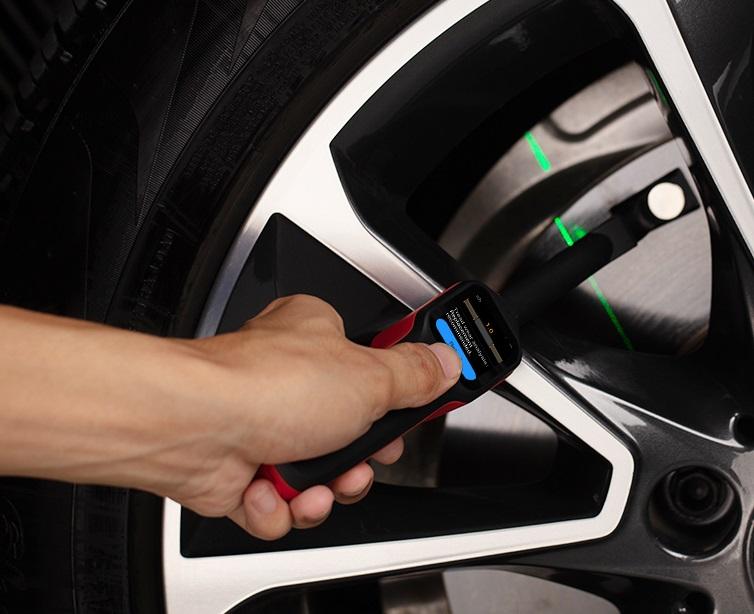

The MaxiTPMS TBE100 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED touchscreen, displaying measurement data in real-time. TBE100 can work with MaxiTPMS ITS600 tablets to access detailed replacement & maintenance suggestions for quick tire service, document tire wear and damage. Use the tool separately, or with ITS600 to view and print detailed reports.

LASER MEASUREMENT
• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Single tread and full tread measurement
• Quick Check both tread depth & brake disc

REAL-TIME TIRE HEALTH ANALYSIS
• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)


COMPREHENSIVE TEST REPORT

Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)

EASY TO USE QR CODE REPORT DOWNLOAD & SHARING
Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.


Contents
• Main Unit
• Calibration Table
• Power Adapter
• Type C USB Cable
• Quick Reference Guide
• Packing List
• Carrying Case







Recommended Use Indoor
Processor 4x ARM Cortex-A35 (1.5 GHz)
Memory 1GB RAM LPDDR3 & 4GB ROM
Display 1.65-inch AMOLED capacitive touchscreen with 348x442 resolution
Connectivity

• Wi-Fi
• USB 2.0, Type C

Camera 1 megapixel
Audio Output Output: Beep
Power and Battery • 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5V AC/DC power supply
Battery Charging Input 5V/1.5 A
Power Consumption 300 mA (AMOLED on with default brightness) @3.7V
Operation Temp. -10 to 45ºC(14 to 113ºF)
Storage Temp. -20 to 60ºC(-4 to 140ºF)
Dimensions (WxHxD) 283.0 mm (11.14") x 39.0 mm (1.54') x 33.5 mm (1.32")
Net Weight 186 g (0.41 lb.)
