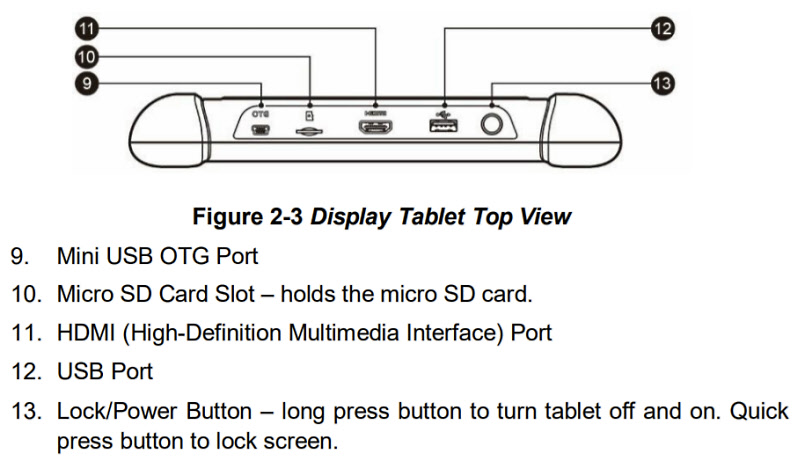

Includes HDMI port
Thee tools in one

Autel Comparison of TPMS tools

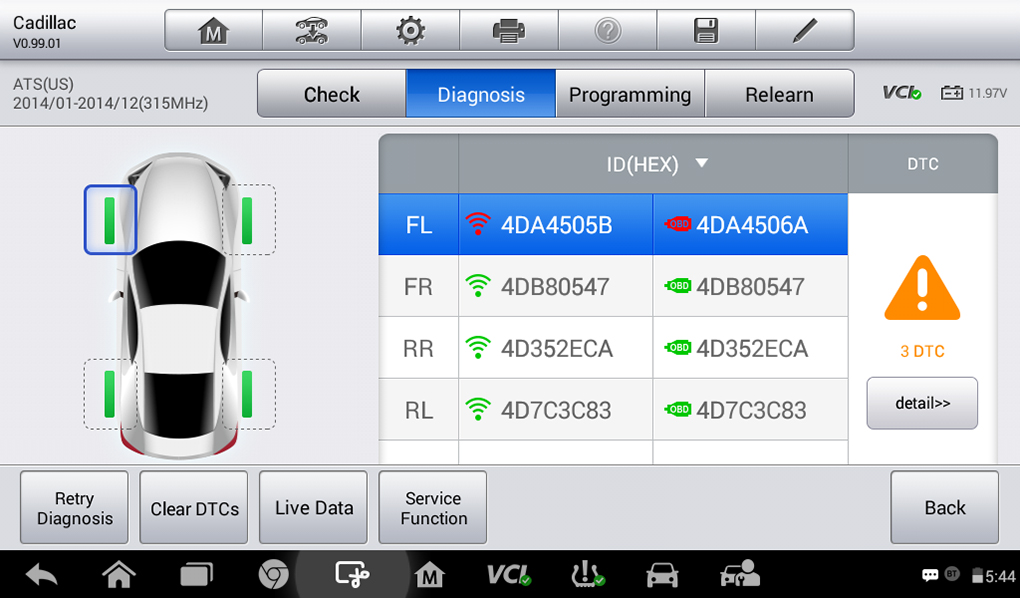

Status Screen

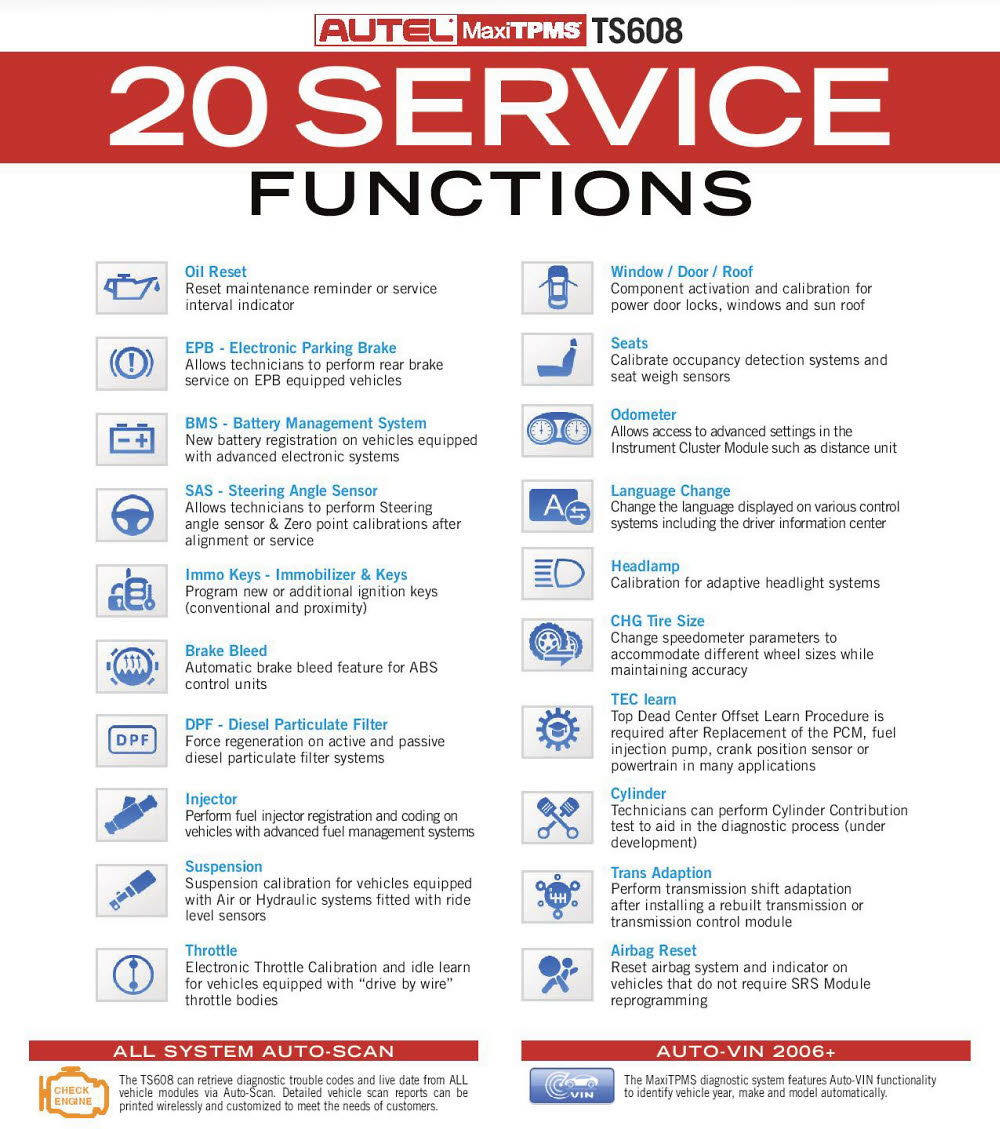

ts608 Service Functions

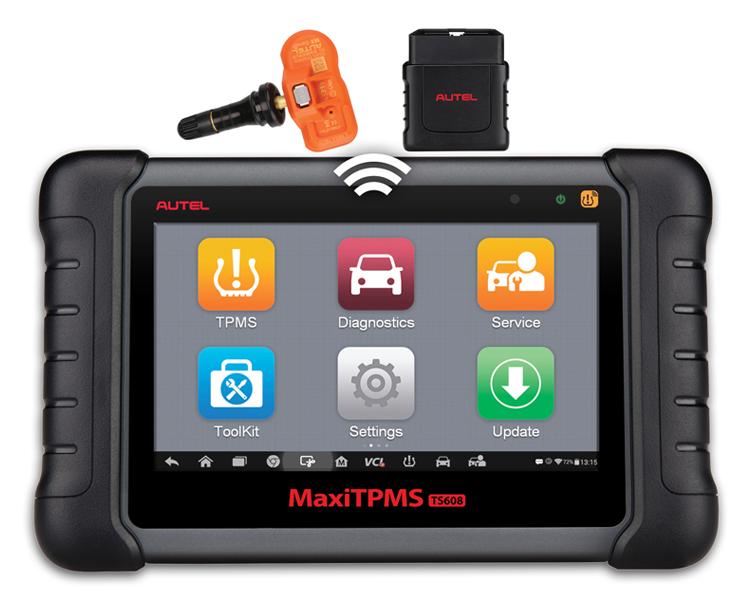

MaxiTPMS ts608k-1 with 8 MX 1-Sensors

AES#:
atl-ts608k-1

$799.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Comparison
Videos

MaxiTPMS TS608K-1 Kit includes the Autel TS608 along with (8) rubber MX 1-Sensors.

The Autel MaxiTPMS TS608 provides you TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a mini VCI for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor.

COMPLETE TPMS FUNCTIONS (Details, scroll to page 16.)
1. Activate all known TPMS sensors and read sensor status
2. Diagnose ECU for complete TPMS health check with DTC description
3. Read DTCs from ECU and erase DTCs
4. Program MX-Sensors by copying original sensor IDs or creating new IDs randomly
5. On-tool relearn procedure and wide OBD relearn coverage
6. Toolkit, special TPMS functions

ALL SYSTEMS DIAGNOSTICS (Details, scroll to page 45.)
1. Read/clear codes for all available electronic systems
2. Turn off warning lights
3. Display live data in text, graph & analog for easy data review
4. Supports all 10 test modes of the latest J1979 OBD II test specs;
5. Enhanced OBDII Mode 6

ADVANCED SERVICE FEATURES (Details, scroll to page 70.)
1. Relearn parking brake pad after replacement
2. Reset Steering Angle Sensor (SAS)
3. Reset service mileage and service intervals
4. Forced regeneration and adjusting injectors
5. Support battery registration and reset
6. Support IMMO functions

WIRELESS BLUETOOTH MAXI-VCI MINI
The compact, Bluetooth MaxiVCI OBDII connector transmits vehicle data to the TS608 tablet for greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.

COVERAGE and UPDATES
The tool includes a 1-year update subscription.
Coverage details.

CONTENTS
- 8 MX 1-Sensors (Rubber)
- MaxiTPMS TS608 tablet (Android)
- MaxiVCI Mini
- USB Cable (2 meters) for testing
- Magnet
- USB Cable (90 cm) for charging
- USB External AC Power Adapter
- Hex Key
- Carry Case
- User Manual
- Quick Reference Guide
- 1-year update subscription
- 1-year limited warranty

SPECIFICATIONS
Operating System Android™ 4.4.2, KitKat
Processor Cortex-A9 processor (1.6 GHz)
Memory 1GB RAM DDR3 & 32GB ROM
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0;
USB 2.0;
Wi-Fi;
HDMI Type A;
Micro SD card slot (supports up to 32GB);
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A;
Output: Beep;
Power and Battery 3.7 V/5000 mAh lithium-polymer battery;
Charges via 5 VDC power supply;
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight 885 g (2.31 lb.)
Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM,
ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN),
SAE J2610, GM UART,UART Echo Byte Protocol,
Honda Diag-H Protocol, TP2.0, TP1.6



COPY BY OBD with the Autel TA508/TS608, combines the ID Program and Position Relearn into one step. Also avaia

Introduction to the Autel TS608



Advanced Service Functions + All Systems Diagnostics



TPMS Relearn Function



MX-Sensor Programming



BMW Battery Registration using Autel TS608. This procedure can also be preformed with the Autel MD808 Pro and Autel mx808, and the MaxiSys units. All the steps are the same for each tool.
