MaxiVideo MV108S(8.5mm Camera Head)

AES#:
ATL-MV108S
UPC:
849438016302

$59.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Comparison

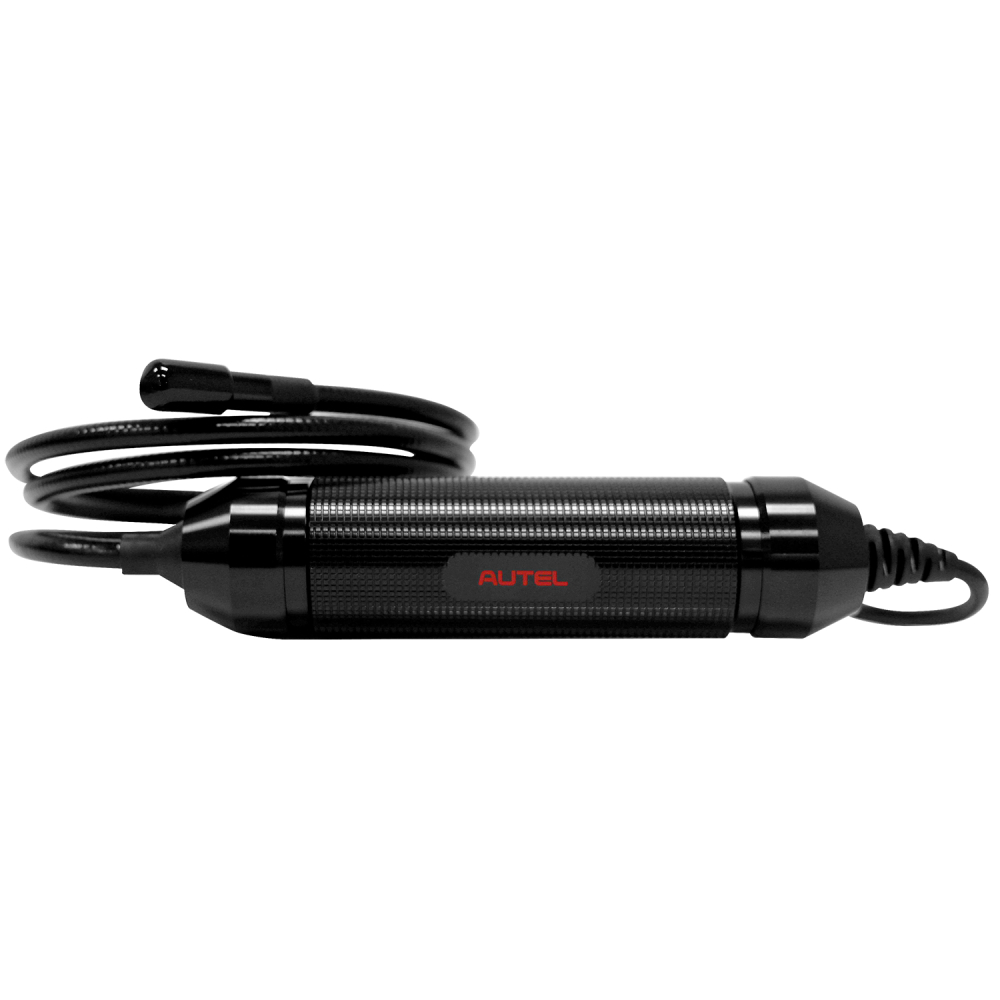

The MV108S digital inspection camera turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas hidden from sight. It is capable of recording digital still images and videos. Includes mirror, hook and mirror attachments.

The MV108S features a 2 mega-pixel high resolution (1920x1080) camera inside an 8.5mm diameter head.

The camera and the Super bright LED provide up-close and clear images when inspecting or searching for parts in confined and dark spaces.

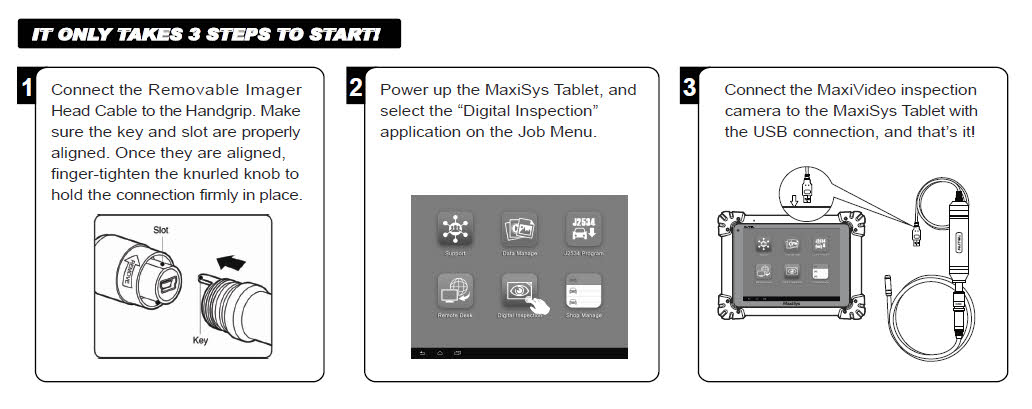

A 1-meter waterproof USB cable connects the MV150S to an Autel tablet and use the MaxiVideo app to record video and capture stills.

The imager head is rated IP67:
6 = Dust tight; dust cannot ingress.
7= Secure when immersed in water up to 1m for 30 minutes.

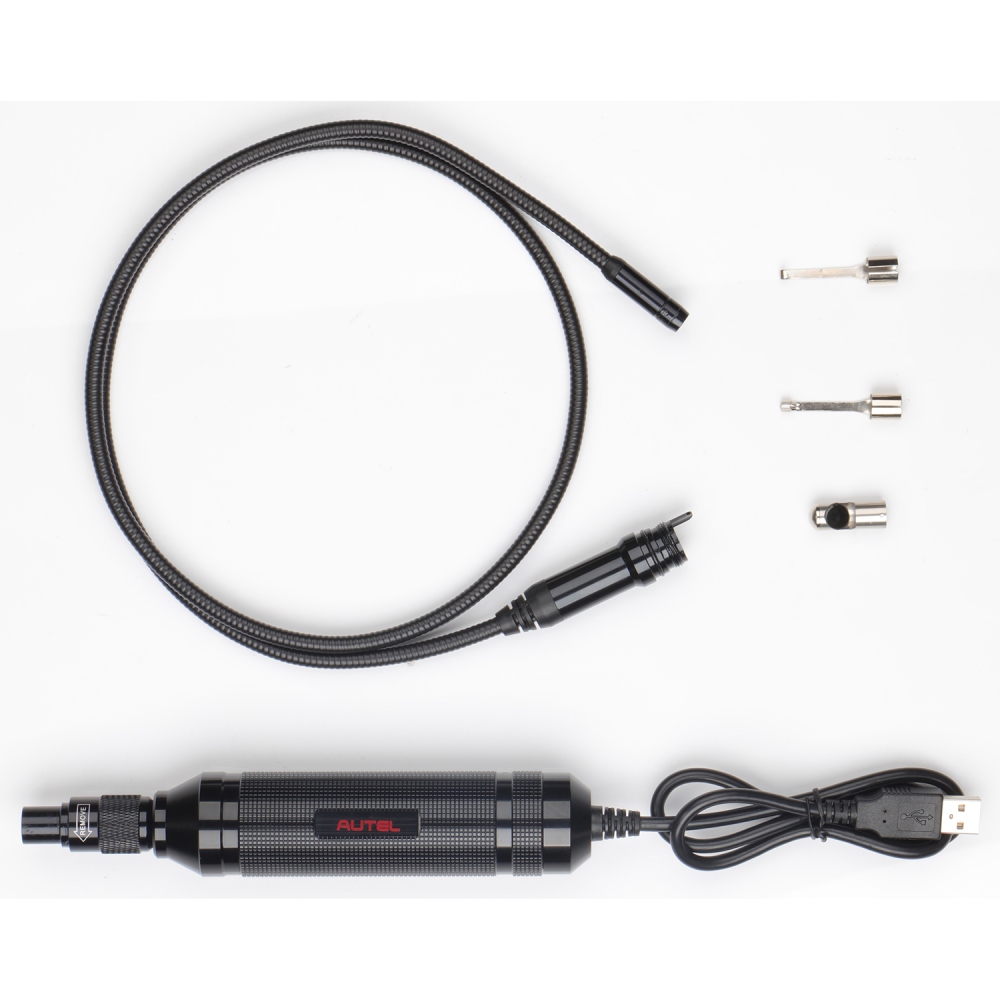

Contents
- MV108s unit with Removable Imager Head Cable, Handgrip, USB Cable
- Magnet – picks up small metal objects, such as dropped rings or screws
- Mirror – to look around corners and see the unreachable areas
- Hook – unclogs obstacles and picks up wires in the pipes or confined areas
- 1-year warranty

Specifications

Imager Head Distance   8.5m
Camera   2 MP
Resolution   1920 x 1080
Depth of Field   3cm to 8cm (1.18" to 3.15")
LED Beads   8 pcs
Imager Head Cable Length   1m (39.37")
Waterproof level (Imager Head)   IP67
Operating Temperature   -10 °C to 70 °C (14 °F to 158 °F )
Storage Temperature   -10 °C to 70 °C (14 °F to 158 °F )
  MV108S MV105S MV108 MV105
Camera 2MP 1MP 0.3MP 0.3MP
Resolution 1920x1080 1280x720 640x480 320x240
Imager head  8.5mm 5.5mm 8.5mm 5.5mm
Depth of field 3~8cm 2~10cm 2~6cm 2~6cm
Angle of view 81° 90° 70° 70°
Imager head cable length 1m 1m 1m 1m
Connection USB2.0 USB2.0 USB2.0 USB2.0
Waterproof level (Imager head) IP67 IP67 IP67 IP67
Operating Temp. (-10℃~70℃) (-10℃~70℃) (-10℃~70℃) (-10℃~70℃)
Storage Temp. (-10℃~70℃) (-10℃~70℃) (-10℃~70℃) (-10℃~70℃)
Reflector Yes Yes Yes Yes
Magnet Yes Yes Yes Yes
Hook Yes No Yes No
