The TC005 is a professional thermal camera built for precise, measurable inspections. Featuring 256×192 IR resolution with TISR-supported image processing, bumping it to an effective 512×384, it delivers clear thermal detail for electrical, industrial, and technical work. An integrated visible-light camera and built-in laser distance measurement provide added context and accuracy during inspections.
Dual-Light Imaging for True Diagnostic Accuracy

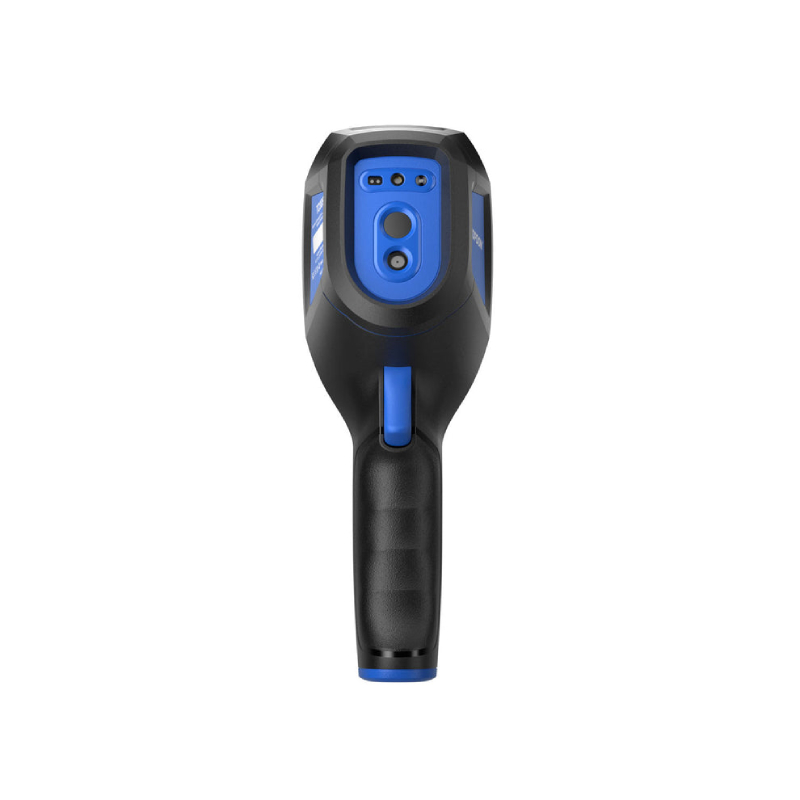

The TC005 integrates a 256 × 192 infrared sensor with TISR enhancement, producing an effective 512 × 384 thermal image. A built-in 2 MP visible-light camera adds clear visual reference, allowing you to correlate heat signatures with physical components for more precise diagnostics.
Laser Targeting for Measurable Precision
With an integrated laser distance measurement up to 2 meters, the TC005 enables precise targeting and measurable reference points—helping ensure that every scan is intentional, repeatable, and accurate.
Larger Display for Clearer Evaluation

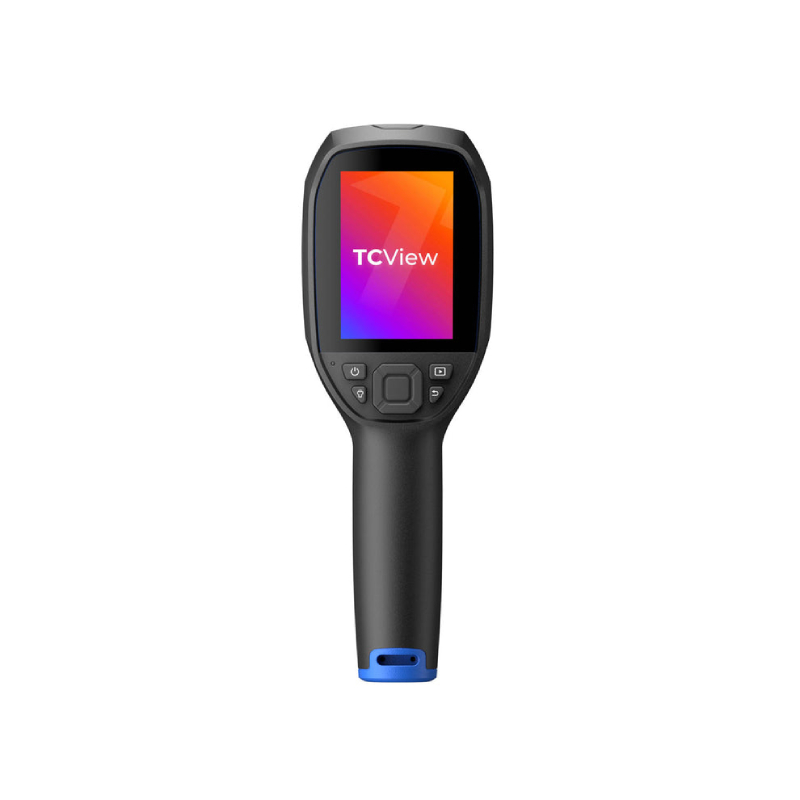

A 3.5-inch display provides a larger, clearer viewing experience, making it easier to interpret thermal data and verify findings on-site without second-guessing.
Expanded Storage for Complete Documentation
With 64 GB of internal storage, the TC005 allows extensive image capture and organized data retention, supporting professional documentation and reporting.
Professional Analysis & Reporting
The TC005 connects via Wi-Fi to the TopInfrared mobile app and USB cable to TopView PC software, enabling streamlined image transfer, advanced thermal analysis, and fast generation of professional inspection reports.
Built for Professional Field Demands
The TC005 operates up to 8.5 hours on a full charge and recharges in just 2 hours, minimizing downtime during long inspections. Its IP54-rated housing, 2-meter drop resistance, integrated LED light, and protective hard carrying case ensure reliable performance in demanding professional environments.
Specifications
• 3.5 inch, 640x840 screen
• 256*192 Hi Red IR Camera and 2MP Visual Light Camera
• -4 to 1022°F (-20 to 550°C) Temp range
• 8.5 hours of battery life
• Dual LED flashlights
• Screen shot and screen recording functions
• Heat Sensitivity: 40mk
• FOV: 40°X30°
• Fresh Rate: 25Hz
• Designed to withstand drops up to 2 meters
• IP54 water and dust-resistant
Contents
• TC005 Thermal Camera
• Universal Travel Adapter
• USB Cable (USB-A to USB-C)
• User Manual
• Carrying Case
• Product Certificate
• Calibration Certificate
• 1-year warranty
