> Scan Tools > Launch X431 Throttle V (341184002)

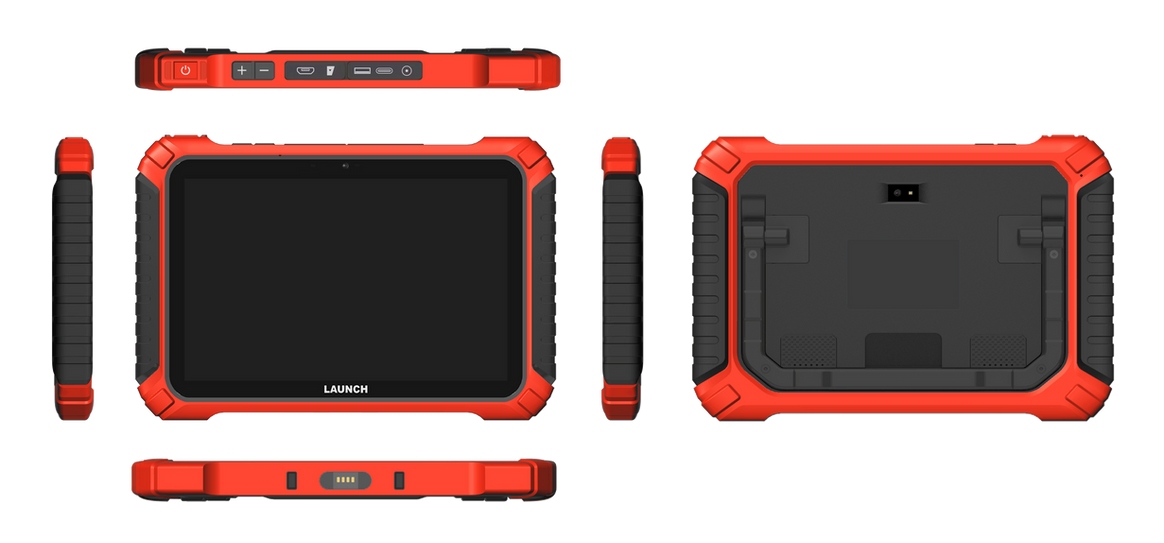

Front, back, top views

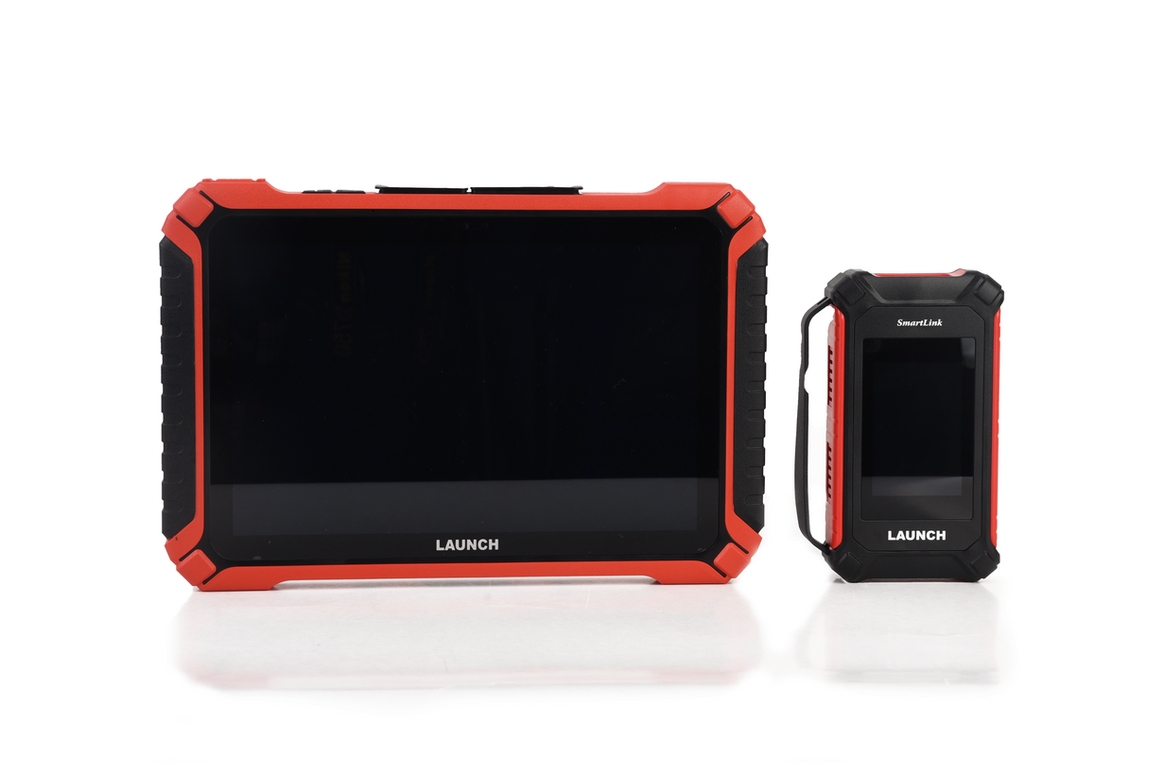

Launch X431 Throttle V (341184002)

AES#:
L-Throttle-5

$5,800.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Comparison

The X-431 Throttle 5 delivers a combination of automotive intelligence, quick navigation, and ergonomic handling for optimal efficiency. As the most powerful automotive scan tool in the X-431 family, the X-431 Throttle 5, provides lightening-fast performance for optimal efficiency during the diagnostic and repair of a vehicle. With access to the latest OEM carline software and, X-431 Fix and CODEASSIST carline repair information, the diagnostic repair process repair can effectively and accurately be accelerated with confidence.

Features

  • 13.6 inch, new 2k high definition display screen with dual-color product appearance.
  • Large memory size 12GB RAM+512GB ROM , accompanied with long lasting battery.
  • Covers a wide variety of vehicle models with powerful diagnostic functions rivaling original manufactures in code reading, code clearing, data streaming, and actuation tests.
  • Supports CANFD\DOIP diagnostic protocol.
  • Supports US FCA SGW security gateway unlock.
  • Supports fast scan for topological graph multisystem module, providing fast diagnosis speed.
  • Features smart diagnosis function using VIN code to automatically identify vehicle information, helping you to enter diagnosis quickly.
  • Supports vehicle model software on-click smart upgrade.
  • Supports IM Readiness.
  • Supports remote diagnosis, allowing technician to remote assist diagnosis in a different region.
  • Supports selected parts extension module, including: TPMS tire pressure gun, ADAS calibration, endoscope, BST360 blue tooth battery inspection, and PROG3 IMMO programmer .
  • Able to perform tire pressure activation, programming, learning and detection function with tire pressure gun.
  • Provides CODEASSIST and X-431 FIX (paid) function to acquire millions of DTC solutions within a short term.
  • Supports diagnosis extension service for a variety of vehicle models, including commercial, motorcycle, and new energy battery pack inspection.

Specifications
- Android 13
- Processor: 2.0GHz 8 core
- Memory: 12gb
- Storage: 512gb
- Display Screen: 13.6 inch
- Resolution: 2560x1600
- Battery: 9,360 mAh at 7.6V/71.1Wh
- Wi-Fi: 2.4GHz&/5GHz dual frequency
- Camera: Rear 20MP, Front 8MP
- Interface: Type C, Type A, DC IN, Micro SD, Mini HDMI
- Size: 14.83*9.69*1.38 in

Contents
- X431 Throttle V Tablet
- SmartLink V3.0
- Ethernet Cable (15m)
- OBII Cable
- Power Adapter
- Type A to Type B Data Cable
- Type C to Type C USB Cable
- HDMI Cable
- Universal Pin Envelope
- Quick Start Guide







Feature Throttle Throttle III Throttle V
Operating System (OS) Android 7.1 Android 9.0 Android 13
CPU 2.0GHz Octa-core 2.0GHz Octa-Core 2.0GHz Octa-Core
RAM 4GB 8GB 12GB
Storage 64GB (SD optional) 256GB 512GB
Display 10.1” IPS 1920×1200 13.3” 1920×1080 13.6” 2560×1600 (New 2K HD screen)
Battery 9360mAh 9,360 mAh at 7.6V/71.1Wh 9,360 mAh at 7.6V/71.1Wh
Battery Endurance 9360mAh Capacity Long-hour endurance for extended usage Equipped with high endurance battery
Wi-Fi 2.4GHz & 5GHz, dual Wi-Fi 2.4GHz & 5GHz, dual Wi-Fi 2.4GHz & 5GHz, dual Wi-Fi
I/O Ports USB Type C, USB Type A interface USB Type C, USB Type A, DC IN, Micro SD, Mini HDMI USB Type C, USB Type A, DC IN, Micro SD, Mini HDMI
Camera Front 8MP, Rear 13MP Front 8MP, Rear 13MP Front 8MP, Rear 20MP
Electricity DC IN DC IN DC IN
Protection IP65 IP65 IP65
Screen Size 10.1” 13.3” 13.6” (New 2K HD screen)
Appearance Black & Red Black New two-tone appearance
Performance Full system & full function diagnosis in minutes Great performance with quick speed Running faster, more stable, and longer-lasting
Model Coverage OE-level U.S. vehicle coverage in addition to Asian, European coverage from 1996 and newer. OE-level U.S. vehicle coverage in addition to Asian, European coverage from 1996 and newer. OE-level U.S. vehicle coverage in addition to Asian, European coverage from 1996 and newer.
Diagnostic Protocols & Functions Supports New Age Vehicle Network Protocols – CAN/CANFD/DoIP/J2534/D-PDU/RP1210. Supports New Age Vehicle Network Protocols – CAN/CANFD/DoIP/J2534/D-PDU/RP1210. Strong diagnostic function, including read code, clear code, data flow, action test, and more to the original factory level. Supports New Age Vehicle Network Protocols – CAN/CANFD/DoIP/J2534/D-PDU/RP1210.
Security Gateway Unlocking OE vehicle approved Security Gateway access by FCA certified. OE vehicle approved Security Gateway access by FCA certified. Supports FCA SGW security gateway unlocking. Supports Nissan SGW security gateway unlocking.
Topology Mapping × (normal system scan) Topology module mapping provides a virtual overview of all onboard control modules and their communication statuses. Supports topology map multi-system module high-speed scanning, faster diagnostic speed
Intelligent Features Auto-detect VIN to access vehicle info within seconds. Auto-detect VIN to access vehicle info within seconds. VIN code automatically recognizes the vehicle information, enabling quick diagnosis
Software Upgrades Extra software or other products can be purchased throughout Launch Mall. Extra software or other products can be purchased throughout Launch Mall. Supports intelligent online one-key upgrade of model software
IM Readiness Supports reading IM Readiness function Supports reading IM Readiness function Supports reading IM Readiness function
Remote Diagnosis Support remote diagnosis technology between equipment and equipment terminal, and between equipment and remote desktop Supports Smartlink Remote Diagnosis. Supports remote diagnosis, allowing technicians to carry out remote diagnostic assistance across geographical areas.
Expansion Modules Support extension modules: Battery, Borescope, Ignition, Multimeter, Oscilloscope, Sensor Supports optional extension modules: ADAS calibration, ADAS HD, Immobilizer, Battery Tester, Videoscope, Oscilloscope, and Sensorbox (included). Supports optional expansion modules: TPMS tire pressure gun, ADAS calibration, endoscope, BST360 Bluetooth battery detection, PROG3 anti-theft programmer, and more.
Quick Code Solutions Code Assist access most common fixes and repair solutions with corresponding DTC’s. Code Assist access most common fixes and repair solutions with corresponding DTC’s. CODEASSIST and X-431 FIX (paid) function for quick access to millions of fault code solutions.
Vehicle Extension Services Supports multi-type vehicle diagnostic extension services, such as commercial vehicles, motorcycles, new energy battery pack testing. Supports multi-type vehicle diagnostic extension services, such as commercial vehicles, motorcycles, new energy battery pack testing. Supports multi-type vehicle diagnostic extension services, such as commercial vehicles, motorcycles, new energy battery pack testing.
