> TPMS > MaxiTPMS ITS600 K8 Kit



Comparison Autel TPMS

MaxiTPMS ITS600 K8 Kit

AES#:
atl-ITS600+8
MSRP:
$715.00
Price:
$695.00
Your Savings:
$20.00 (2.8%)
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Comparison
Videos

Same package as the MaxiTPMS ITS600 bundled with 8 Autel 1-Sensors.

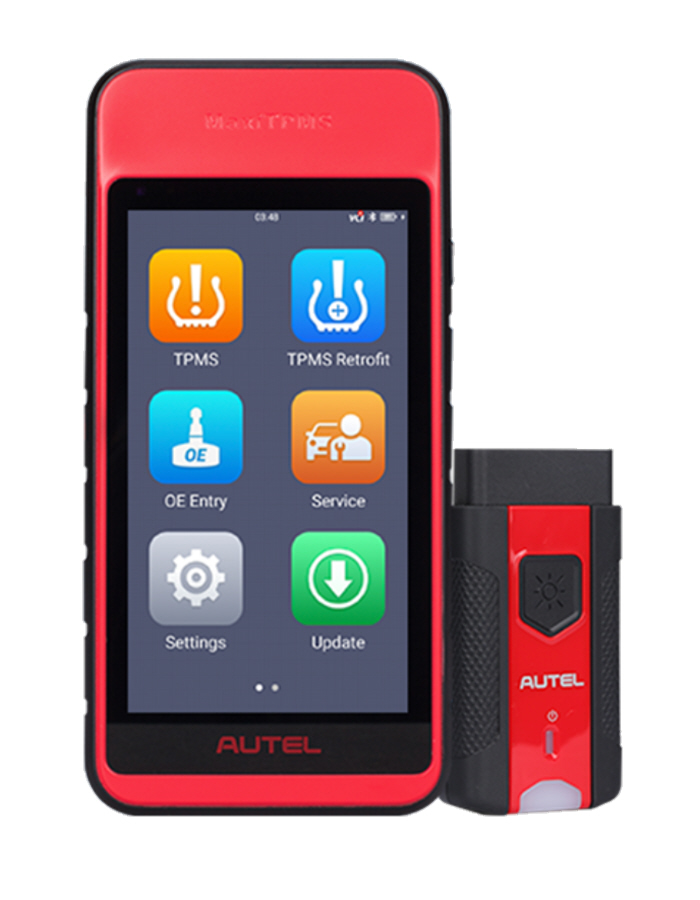

The Autel MaxiTPMS ITS600 is a wireless, touchscreen Android tablet that performs all TPMS diagnostics and service functions on TPMS-equipped vehicles (US, Asian and European).

The Autel ITS600 tablet runs Android 9.0 and features a 5.5-inch color display and a Bluetooth vehicle communication interface (VCI).

The ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, OBDII relearn functionality and onscreen relearn instructions for all vehicles.

The ITS600 can activate, read and relearn all known sensors, and perform four common maintenance services ( OLS / BMS / SAS / EPB).

For the Autel MX-Sensors the ITS600 offers four programming options and batch programming.



MaxiTPMS ITS600
- Wireless Touchscreen Android-based Tablet Tool
- 5.5 Inch high-definition, color display; Android 9.0 OS
- Includes Wireless Bluetooth Vehicle Communication Interface (VCI)
- 8 MP Camera
- 64GB Flash / 1G RAM / SD card up to 64G (not included)

- Battery 3.8V/5000mAh
- Coverage for US, Asian and European TPMS-equipped vehicles (details)
- Rapid VIN acquisition via optical VINscan function (also AutoVIN, QR code/Barcode scan, Plate Scan, Manually select/input)
- Enhanced, At-a-Glance TPMS Diagnostics Status Screen
- Comprehensive Test Reports
- Activates, Reads and Relearns All Known Sensors
- Relearn via OBD, Auto, Stationary
- Programs only MX-Sensors (replaces 99% of OE Sensors) via Copy by Activation, Copy by OBD, Copy by Input, Auto Create
- Batch program up to 20 MX-Sensors
- Read/Erase All System Codes and perform four Service Functions: OLS, BMS, SAS and EPB

Contents
- MaxITS600 Tablet
- 8 Autel 1-Sensors
- MaxiVCI V200
- Power Adapter
- Type C USB Cable
- Hex Key
- Quick Reference
- Packing List
- Carry Case
- Free updates for the life of the tool for TPMS coverage/functions and four Service Functions: OLS, BMS, SAS and EPB
- NOTE: Pro Upgrade subscription for "All System Diagnostics" and "All Maintenance Services" sold separately.
- 1-year limited warranty

Optional Accessories (to be released)
- Mini Thermal Printer (Bluetooth)
- TBE100 Tread Depth and Brake Disc Wear Analysis tool
- TBE200 Tread Depth and Brake Disc Wear Analysis tool
- Pro Upgrade subscription for "All System Diagnostics" and "All Maintenance Services"

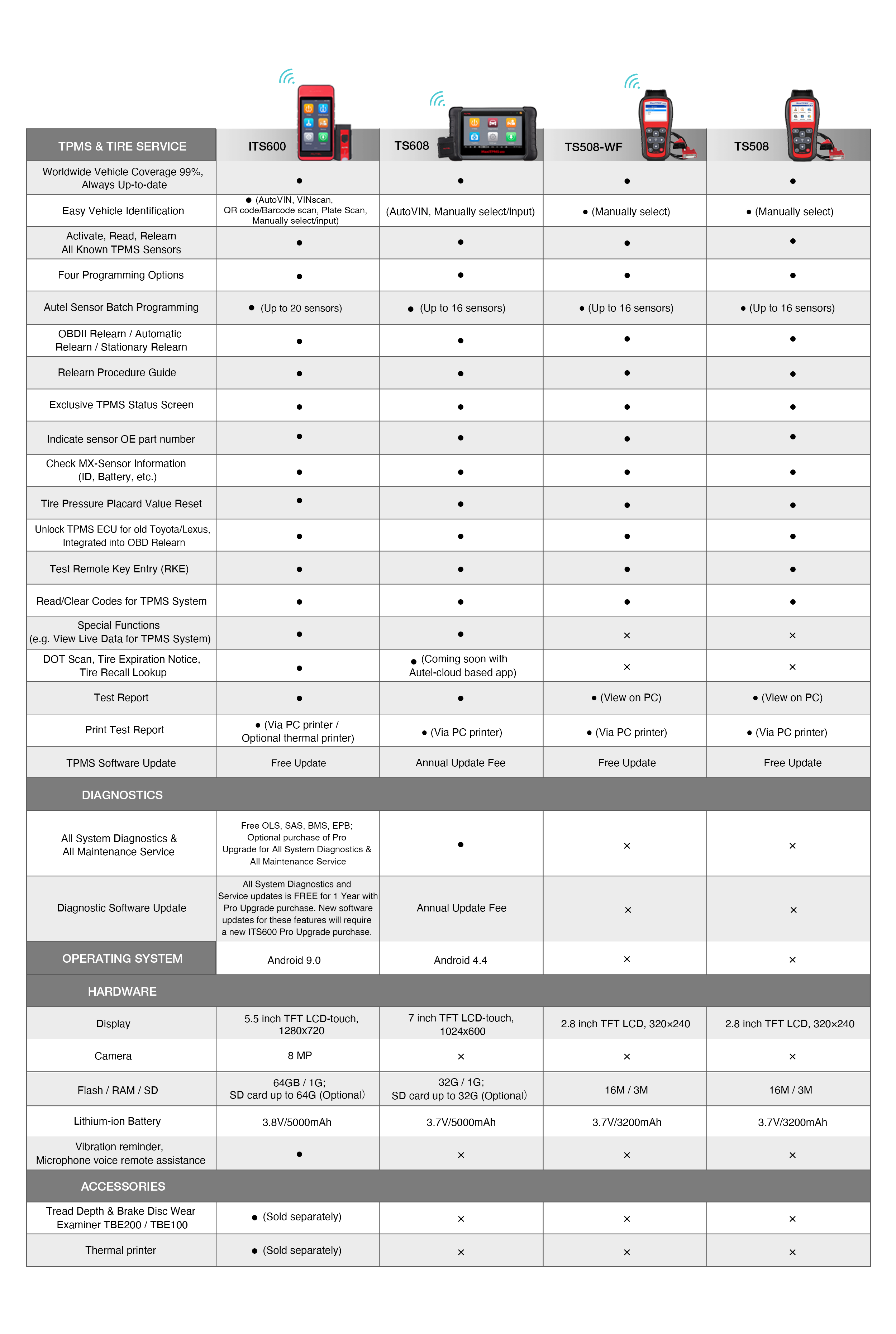

Comparison of Autel TPMS Tools

ITS600 Specifications

Recommended Use Indoor
Operating System Android™ 9.0
Processor Quad-core processor (1.5 GHz)
Memory 1GB RAM DDR4 & 64GB ROM
Display 5.5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity • Wi-Fi
• USB 2.0, Type C
• BT
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A
Output: Beep
Power and Battery • 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply
Battery Charging Input 5 V/2 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp. -10 to 45°C(14 to 113°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
Net Weight 368 g (0.8 lb.)
Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,
GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66



Autel MaxiTPMS ITS600 — MX-Sensor Programming



Autel MaxiTPMS ITS600 - TPMS Relearn Function



Registration & Software Updates ITS600



Updating the ITS600 VCI



ITS600 Unboxing
