MaxiTPMS ITS600CV

AES#:
atl-ITS600CV
UPC:
849438042936

$629.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Specifications

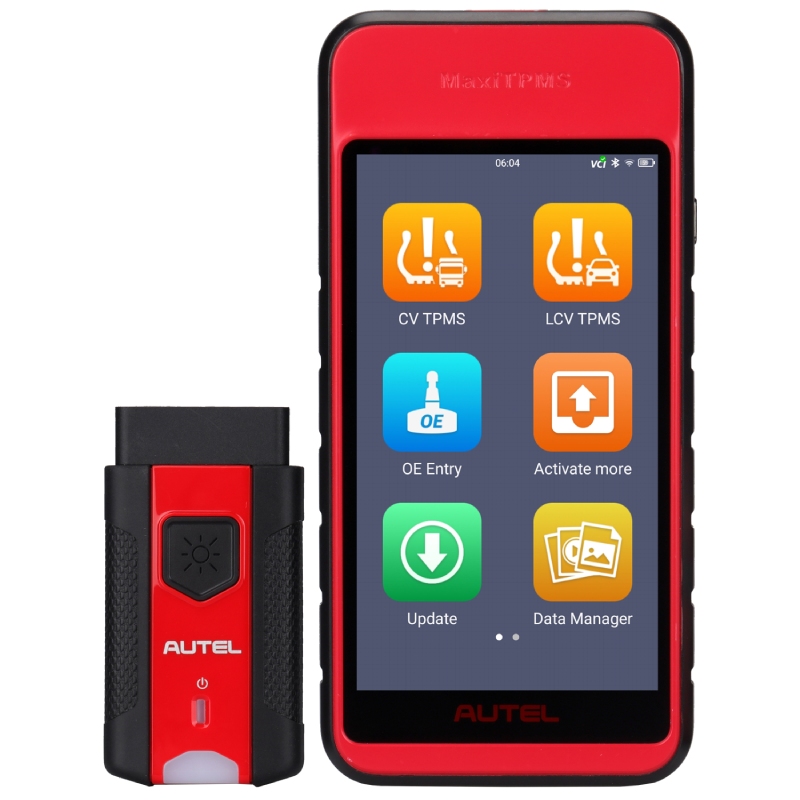

The Autel ITS600CV provides comprehensive TPMS service for Light, Medium, and Heavy-Duty Commercial Vehicles. The 5.5-inch touchscreen Android tablet includes a quad-core processor, 64 GB hard drive, and a high-capacity battery. Equipped with Bluetooth VCI for wireless tablet-to-vehicle communication.

Coverage for TPMS-equipped Bus, Truck, and Trailer, including:
• Fuso
• Freightliner
• MAN
• DAF
• Ford
• Peterbilt
• Mercedes-Benz
• Kenworth
• BYD (Buses)
• EvoBus
• Volvo vehicles and select vehicles equipped with Bendix SmarTire series

MaxiTPMS ITS600CV
- Complete TPMS Service tool for Commercial Vehicles
- Android-based tablet with a 5.5-inch touchscreen display with Bluetooth-enabled VCI.
- Industry-leading coverage for TPMS-enabled Trucks, Trailers, and Buses
- Activate, Read, and Relearn all Known TPMS sensors
- Program Autel MX-Sensor CVS-A01 433 MHZ Sensor to replace OE and programmed aftermarket sensors.
- Separate Tractor and Trailer interfaces display up to 46 wheels and 12 axles
- Pair with TBE200 Tire and Brake Examiner (purchased separately) for detailed tire thread depth analysis of Light Duty Vehicles
- Includes Deutsch 6 and 9-pin, and UNIU-4 DLC adapters
- Generate, Print, and Share TPMS and Tire Service Reports
- Add Passenger Vehicle TPMS, and CV Diagnostics coverage with upgrade purchase.
- Coverage by one-year limited warranty
.

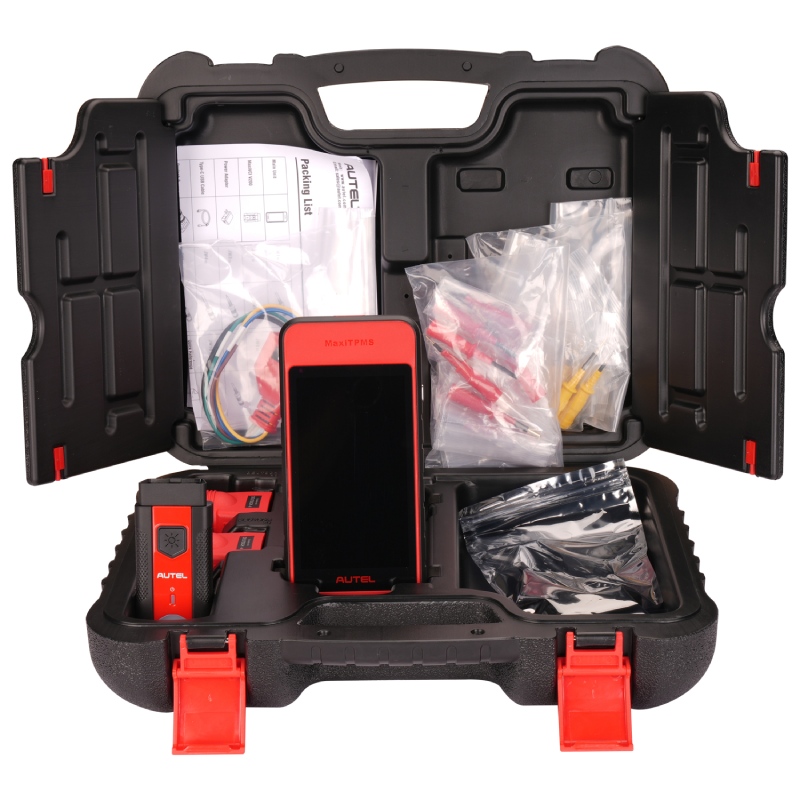

Contents
- MaxITS600 Tablet
- MaxiVCI V200
- Power Adapter
- Type-C USB Cable
- UNI-4
- Deutsch-9 connector
- Deutsch-6 connector
- Spare Fuse x 2
- JW terminal adatpers (10 sizes, 2 of each size)
- Clamp Cable
- Auxiliary Power Outlet Adapter
- Carry Case
- Quick Reference Guide
- Packing List
- 1-year limited warranty




ITS600CV Specifications

Recommended Use Indoor
Operating System Android™ 9.0
Processor Quad-core processor (1.5 GHz)
Memory 2 GB RAM DDR4 & 64 GB ROM
Display 5.5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity • Wi-Fi
• USB 2.0, Type C
• BT
Sensors Light sensor for brightness auto adjust
Audio input/output Input: Microphone
Output: Speaker
Power and Battery • 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply
Input Voltage 12V (9-24 V)
Battery Charging Input 5 V/2 A
Power Consumption 700 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp. 0 °C to 50 °C (32 °F to 122 °F)
Storage Temp. -20 °C to 60 °C (-4 °F to 140 °F)
Dimensions (W x H x D) 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
Net Weight 368 g (0.8 lb.)
Protocols

ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, SAE J2610,GM UART,UART Echo Byte Protocol
Honda Diag-H Protocol, TP2.0, TP1.66, ISO 13400, CAN FD,
SAE-J1939, SAE-J2411 Single Wire Can (GMLAN)
