> Lab Scopes Accessories > NVH Diagnostic ADVANCED Kit in Foam Tray and Carry Case (PQ122)

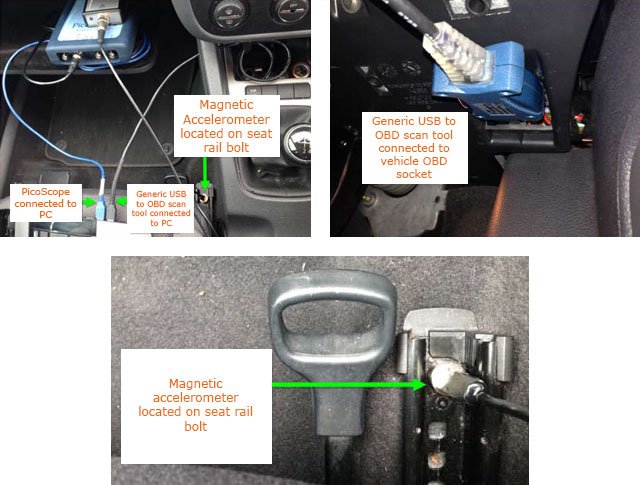

Connections for NVH analysis

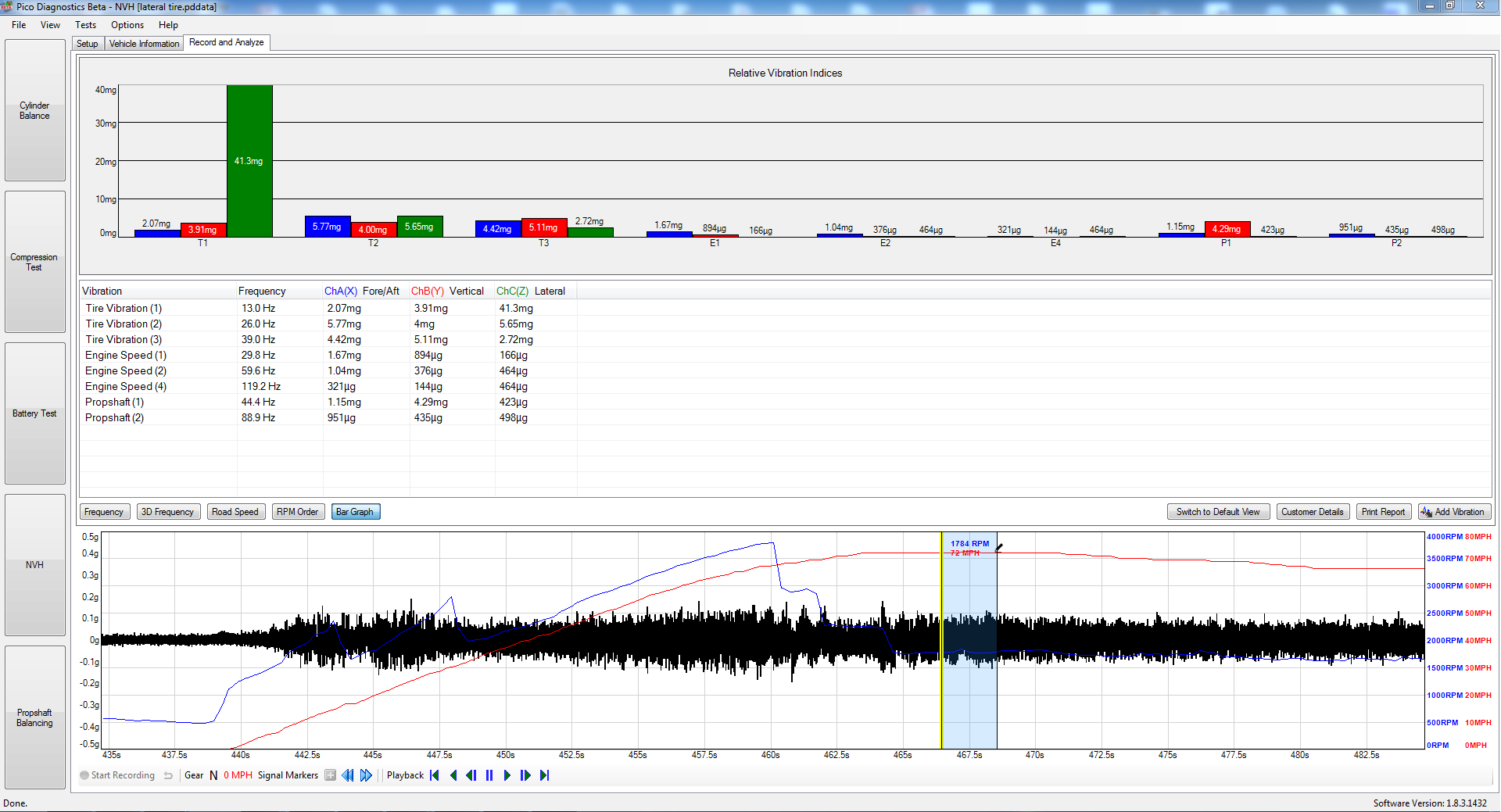

Bar Graph showing a T3 Lateral vibration

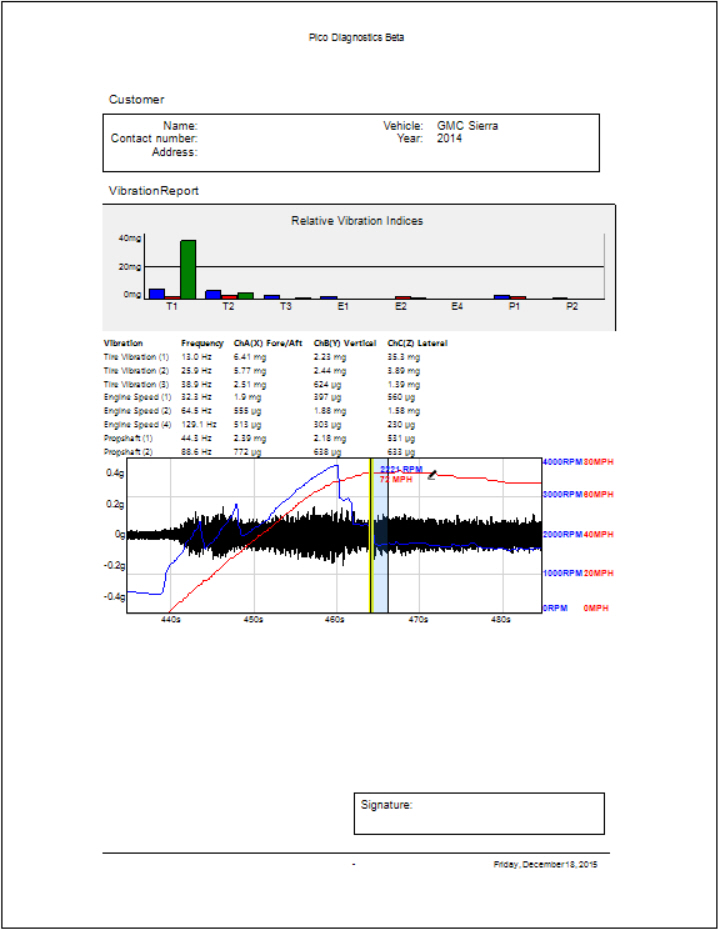

Sample Report


NVH Diagnostic ADVANCED Kit in Foam Tray and Carry Case (PQ122)

AES#:
pt-PQ122
UPC:
2021.12.11

$2,747.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Videos

This kit includes the same accessories as the NVH Diagnostic ADVANCED Kit in Carry Case plus four Foam Tray Organizers.

Each Foam Tray Organizer is 14.56" x 15.25" wide (370 mm x 390 mm) x 1-1/2 deep, and includes a removable 20 mm strip to reduce the width from 15.25" (390 mm) to 14.56" (370 mm).

Using the Pico NVH to identify and solve a driveline vibration on a 2003 Chevrolet S-10 with a 4.3L VIN W





John D. Kelly at Weber State University (WSU) - Automotive Technology Department recorded this excellent demonstration of the PicoScope NVH Diagnostic Kit to find three types of vibrations (T1, E1, P1) on a 2013 Chevrolet Camaro ZL1.



0:00 NVH hardware requirements
3:35 Hardware required for live RPM
10:11 Contents included in the original NVH kit (pp858)
14:00 Summary of hardware to be connected to vehicle
16:10 Measuring engine vibration with accelerometer at radiator support
17:08 Using the Pico NVH software
18:45 Engine RPM selection and NVH Analyzer Setup Wizard
25:30 Overview of NVH Assist Manual (Help File)
27:27 Overview of FREQUENCY and BAR GRAPH views
31:40 Measuring engine related vibrations with accelerometer at engine side of the motor mounts
33:54 Measuring engine related vibrations with accelerometer at radiator support
34:53 Measuring vehicle speed related vibrations with accelerometer at seat rail
41:40 Saving a file
43:27 Finding the cause of a vibration with Pico NVH Assist help file
46:05 Conclusion, “Excellent tool!”



This video features Pico's 1-axis accelerometer which displays one bar graph for each vibration type (T1, T2, T3, E1, E2, E4, PA, P2). The Pico PP986 includes a 3-axis accelerometer which displays a bar graph for each plane (Vertical, Lateral, Front/Back) for each type of vibration.









Overview and test drive with the Pico NVH
