> Cool Tools > TS001 Thermal Infrared Camera for Android with adjustable lens (zoom)









TS001 Thermal Infrared Camera for Android with adjustable lens (zoom)

AES#:
TD-TS001

$279.00
Qty:

California Residents: Proposition 65 Warning



Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)

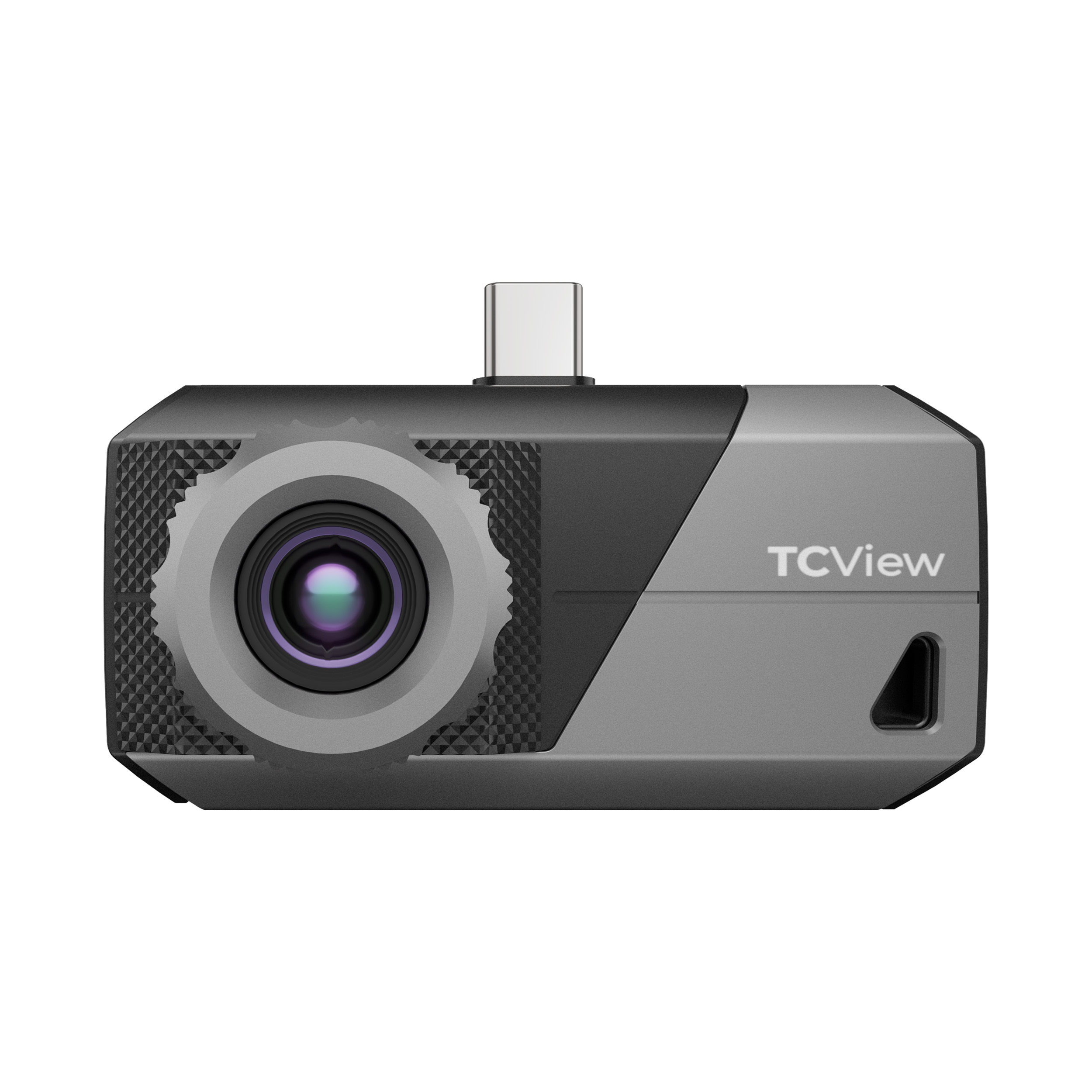

The TOPDON TS001 camera turns your smartphone or tablet into an infrared thermal camera. Use this camera with your phone to check cooling systems, HVAC, seat heaters, wheel bearings, brakes, and more. It features the same 256x192 resolution infrared sensor with 25hz frame but the 9mm lens surpasses the TC001's 3.2mm lens, extending your shooting range for diverse outdoor thermal imaging tasks. Its adjustable lens covers infrared imaging needs from 0.1 to 500 meters. The TS001 provides accurate temperature readings and intuitive insights into heat distribution.

Features
• Superior Image Quality with an IR Resolution of 256x192

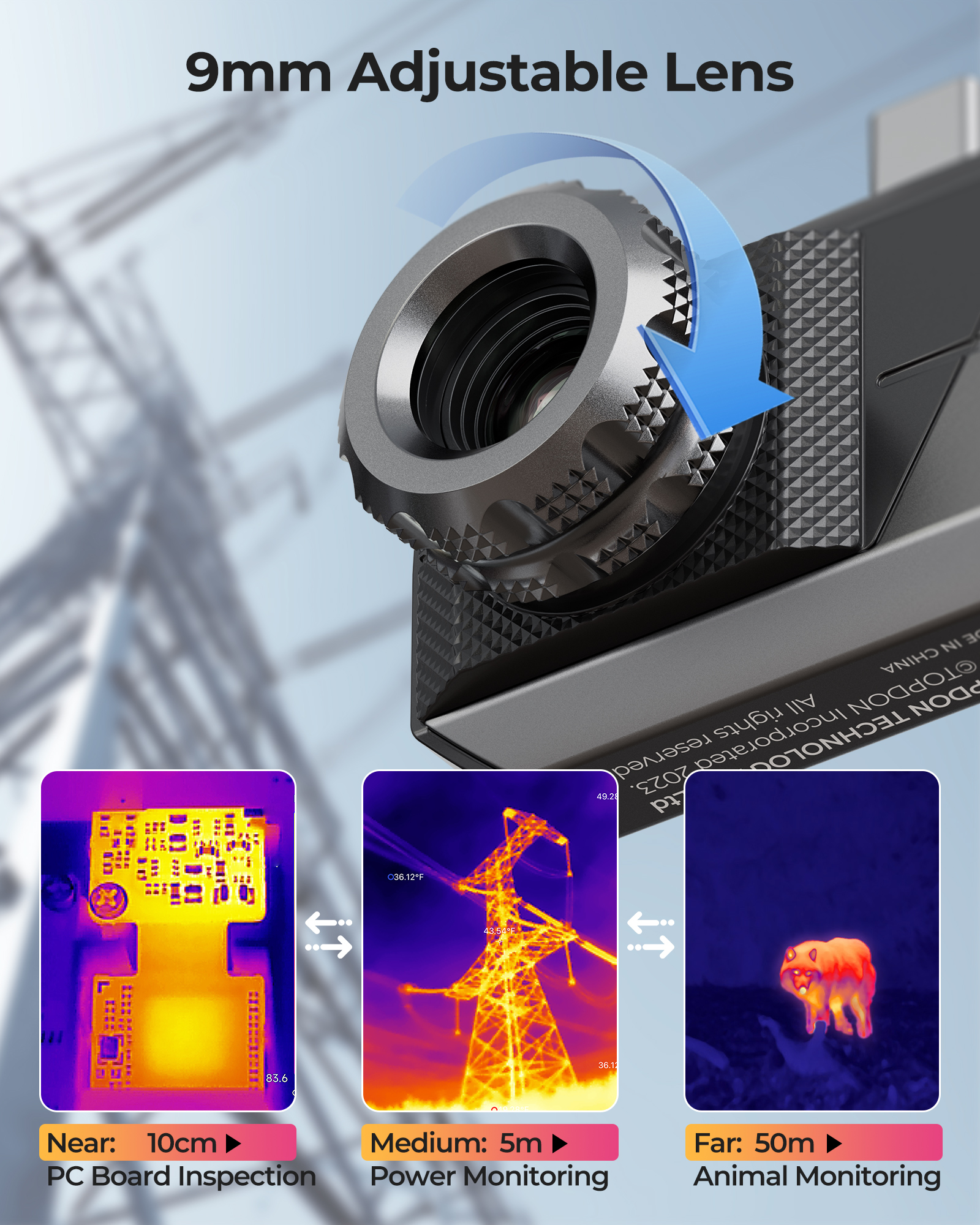

• Adjustable 9mm lense, focus from 0.1 to 500 meters
• Low power consumption of only 0.25W
• Compatible with USB-C Android Phones (adapter required for micro-USB devices)
• Enhanced Testing Range of -4°F to 1022°F (-20C to 550C)
• Three Temperature-Reading Dimensions (high, low, and aim point)
• Customizable Temperature Range
• Generate Temperature Graph for monitoring and logging data
• Image Enhancement Technology
• Plug'n'play, registration not required

Specifications
• Spectral Range: 8~14μm
• IR Resolution: 256×192
• Pixel Size: 12μm
• Frame Rate: 25Hz
• Object Temperature Ranges: -20~150°C (-4~302°F), 150°C~550°C (302~1022°F)
• Accuracy±3ºC or ±3% of reading

Contents
• TC001 Thermal Imaging Camera
• USB-C extension cable with USB-A adapter
• Phone Holder
• Carrying Bag
• Cleaning Cloth
• Quick User Guide
• 1-Year Warranty
