> Cool Tools > MaxiVideo MV105S(5.5mm Camera Head)





MaxiVideo MV105S(5.5mm Camera Head)

AES#:
ATL-MV105S
UPC:
849438016296

$79.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Comparison

The MV105S digital inspection camera turns your Autel tablet into a video inspection scope, allowing you to examine difficult-to-reach areas hidden from sight. It is capable of recording digital still images and videos. Includes mirror attachment.

The MV105S features a 1 mega-pixel high resolution (1280x720) camera inside a 5.5mm diameter head.

Provides up-close and clear images of confined and dark spaces.

The 5.5mm small diameter camera head that fits into most spark plug holes.

The camera and the Super bright LED provide up-close and clear images when inspecting or searching for parts in confined and dark spaces.

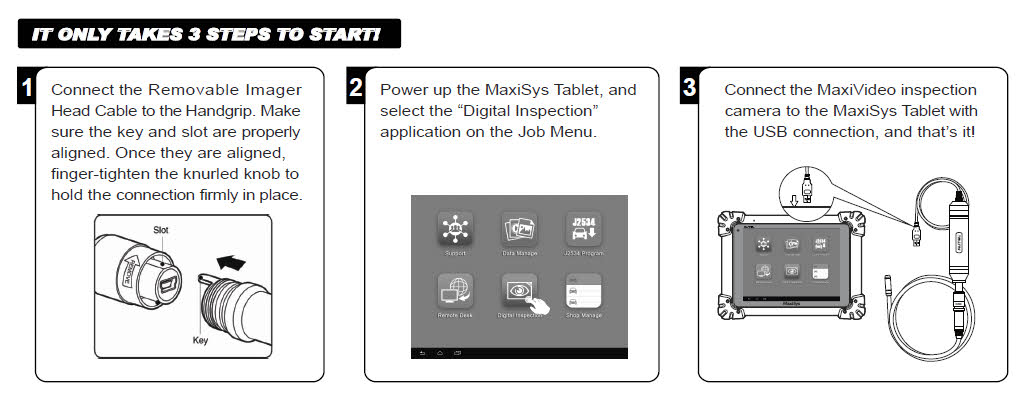

A 1-meter waterproof USB cable connects the MV150S to an Autel tablet and use the MaxiVideo app to record video and capture stills.

The imager head is rated IP67:
6 = Dust tight; dust cannot ingress.
7= Secure when immersed in water up to 1m for 30 minutes.

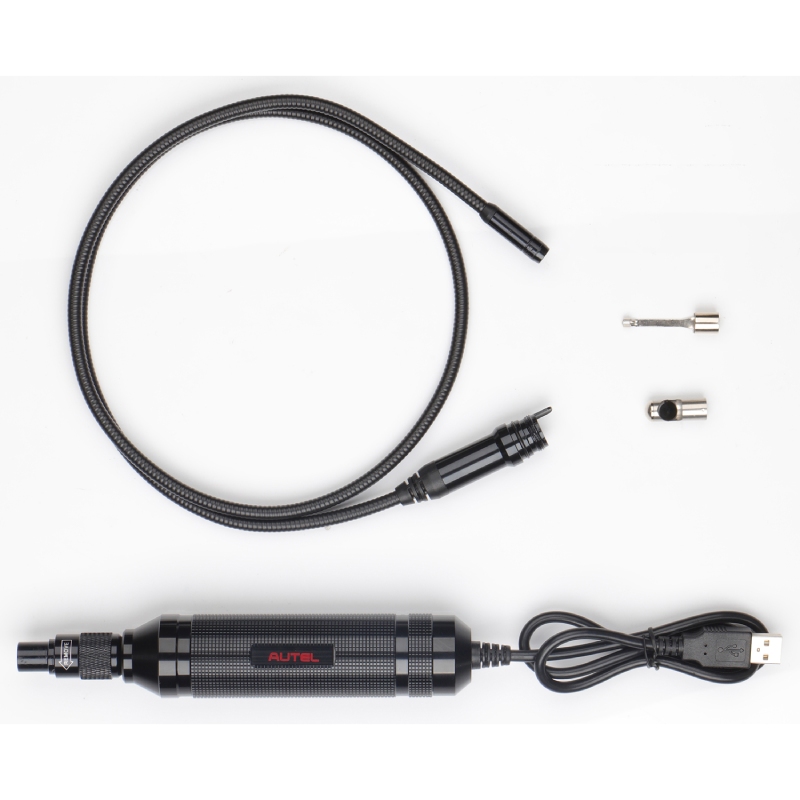

Contents
- MV105s unit with Removable Imager Head Cable, Handgrip, USB Cable
- Magnet – picks up small metal objects, such as dropped rings or screws
- Mirror – to look around corners and see the unreachable areas
- 1-year warranty

Specifications

Imager Head Distance   8.5m
Camera   2 MP
Resolution   1920 x 1080
Depth of Field   3cm to 8cm (1.18" to 3.15")
LED Beads   8 pcs
Imager Head Cable Length   1m (39.37")
Waterproof level (Imager Head)   IP67
Operating Temperature   -10 °C to 70 °C (14 °F to 158 °F )
Storage Temperature   -10 °C to 70 °C (14 °F to 158 °F )



  MV108S MV105S MV108 MV105
Camera 2MP 1MP 0.3MP 0.3MP
Resolution 1920x1080 1280x720 640x480 320x240
Imager head  8.5mm 5.5mm 8.5mm 5.5mm
Depth of field 3~8cm 2~10cm 2~6cm 2~6cm
Angle of view 81° 90° 70° 70°
Imager head cable length 1m 1m 1m 1m
Connection USB2.0 USB2.0 USB2.0 USB2.0
Waterproof level (Imager head) IP67 IP67 IP67 IP67
Operating Temp. (-10℃~70℃) (-10℃~70℃) (-10℃~70℃) (-10℃~70℃)
Storage Temp. (-10℃~70℃) (-10℃~70℃) (-10℃~70℃) (-10℃~70℃)
Reflector Yes Yes Yes Yes
Magnet Yes Yes Yes Yes
Hook Yes No Yes No
