2 pin breakout lead Kostal

AES#:
pt-TA194
UPC:
2018.08.16
MSRP:
$40.00
Price:
$38.00
Your Savings:
$2.00 (5%)
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)

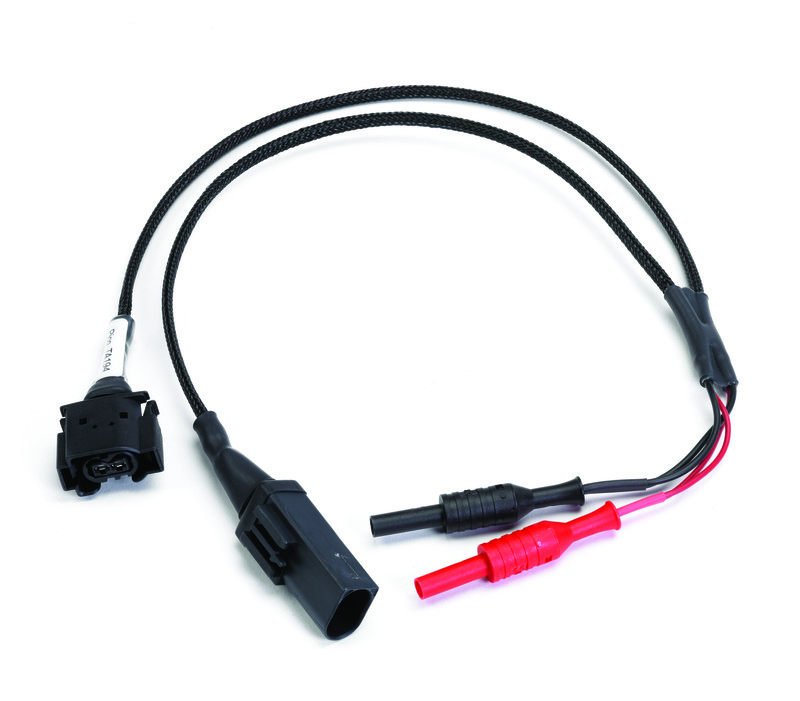

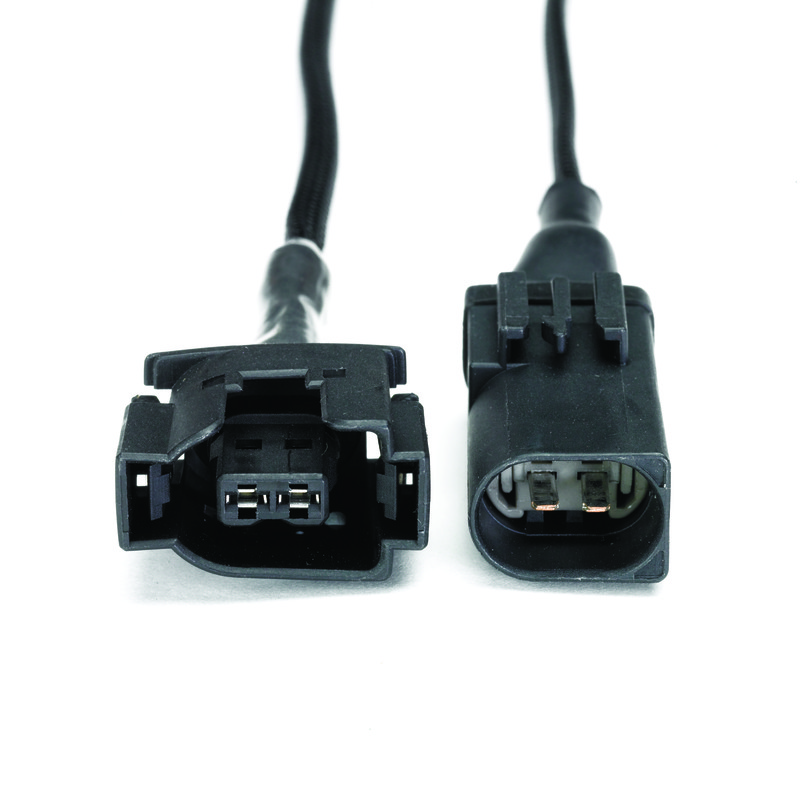

The Pico TA194 This connector breakout lead enables you to take voltage readings from the numerous sensors and actuators in the engine compartment. Simply connect the breakout lead into the existing cable loom, and then connect the 4mm banana plug of your test lead to the breakout leads banana jack. The breakout cable gives access to the individual wires to allow probing with current clamps. For example, this allows both injector current and injector voltage to be captured.

Connecting the connector breakout leads
The signal pins must be identified by wiring diagrams or other means.
Regardless of the number of pins, Pico connector breakout lead colours are manufactured as follows:
Pin 1 - Green
Pin 2 - Red
Pin 3 - Blue
Pin 4 - Yellow
Pin 5 - White
Pin 6 - Black
It may be possible to cause a short circuit to the oscilloscope unit if incorrect connections are made! A short circuit could seriously damage the unit and will require it to be repaired at your own cost.
