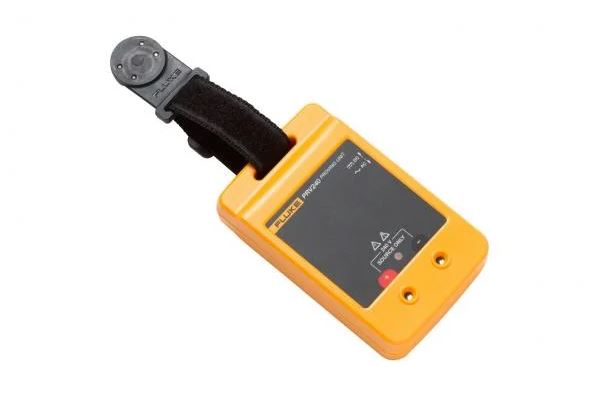

The Fluke PRV240 provides a safe method to “Test Before Touch” (TBT) to verify that your electrical test tool is operating properly before you conduct any live tests.

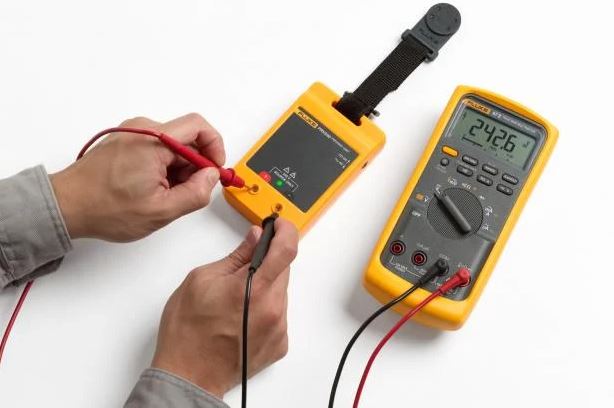

The concept of “Test Before Touch” (TBT) involves testing your meter against a known live source before and after the actual measurement. This sequence verifies that your test tool is operating properly during the actual measurement.
Using the PRV240 reduces the risk of shock and arc flash by validating the functionality of test tools without placing yourself in a potentially hazardous electrical environment
• Supplies 240 V DC/AC steady-state voltage suitable for both LoZ and HiZ instruments.
• A single LED indicator simplifies operation, ensuring hassle-free compliance with TBT verification for your test tool.
• Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
• Voltage is sourced through recessed contacts that are activated after test probes are inserted to avoid accidental contact

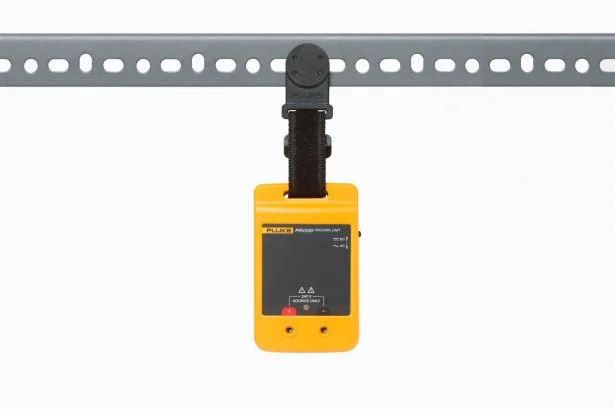

• Includes TPAK magnetic hanging strap
• Long battery life—5,000 tests per set of four AA batteries
• Engineered to meet safety and compliance standards.
The Fluke PRV240 – where reliability and safety go hand in hand.
Contents
• Fluke PRV240 Proving Unit
• TPAK hanging strap
• Four AA batteries
• Quick reference guide
• 1-year warranty
Specifications: Fluke PRV240 Proving Unit
| General Specifications |
| Output voltage |
240 V ac rms or dc |
± 10 % ≥ 1 MΩ |
| |
LoZ >3 kΩ load |
60 V ac typical
50 V ac rms minimum |
| LED power indicator |
Turns on when output voltage is present |
| Battery |
4 AA Alkaline batteries NEDA |
24 A IEC LR03 |
| Battery life |
5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load |
| Operating temperature |
-10 °C to +50 °C |
| Operating humidity |
0 % to 90 % (0 °C to 35 °C)
0 % to 70 % (35 °C to 55 °C) |
| Operating altitude |
2000 m |
| Dimensions |
11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2 |
| Weight |
0.23 kg (8 oz) includes batteries |
| Safety |
IEC61010-1, IEC61010-2-030 |
| Warranty |
One-year |
Electromagnetic
Compatibility (EMC) |
IEC 61326-1 |
Portable EM environment; CISPR 11, Group 1, Class A |
| US (FCC) |
47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103 |
| Korea (KCC) |
Class A Equipment (Industrial Broadcasting & Communication Equipment) |
| This product meets requirements for industrial (Class A) electromagnetic wave equipment and the seller or user should take notice of it. This equipment is intended for use in business environments and not to be used in homes. |
