PicoBNC+ 60 A DC Compact Current Clamp (TA496)

AES#:
pt-TA496
UPC:
2022.02.16

$252.00
Qty:

California Residents: Proposition 65 Warning

Eligible for FREE Ground Shipping(Eligible for FREE Ground Shipping)
Description
Specifications

in Stock!

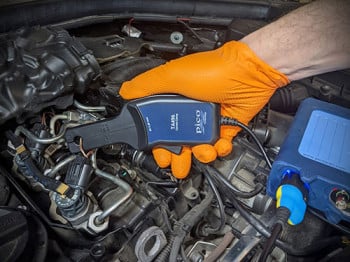

The PicoBNC+ 60A DC Compact Current Clamp (TA496) with PicoBNC+® does not have a battery or a Zero button and is smaller than Pico's long nosed current clamp, the TA473.

Three things happen when the probe is connected to the PicoBNC+® on the PicoScope 4225A/4425A:
1. It is powered. (no more changing batteries)
2. It is zeroed. You can also use the PicoScope 7 software to zero the clamp
3. Pico 7 software automatically scales (ranging) for the clamp.

The TA496 clamp boasts amazing resolution and accuracy with reduced noise levels when testing:
- Gas and diesel injectors
- Solenoids
- Throttle motor functions
- EGR actuators
- Broadband 02 sensors (in conjunction with current multiplier)
- High current consumption tests up to 60 Amps (Motor lock-up test)
- Parasitic drain

The TA496 60A DC Compact Current Clamp
- PicoBNC+™ scope connector
- Range: 5mA and 60A
- 9mm diameter jaw (0.35")
- Overall length of probe with shielded lead is 2.85 meters (9' 4")
- Battery not required!
- 1-year warranty

The TA496 clamp is CAT II 300 V rated and double insulated so is suitable for use in automotive environments.

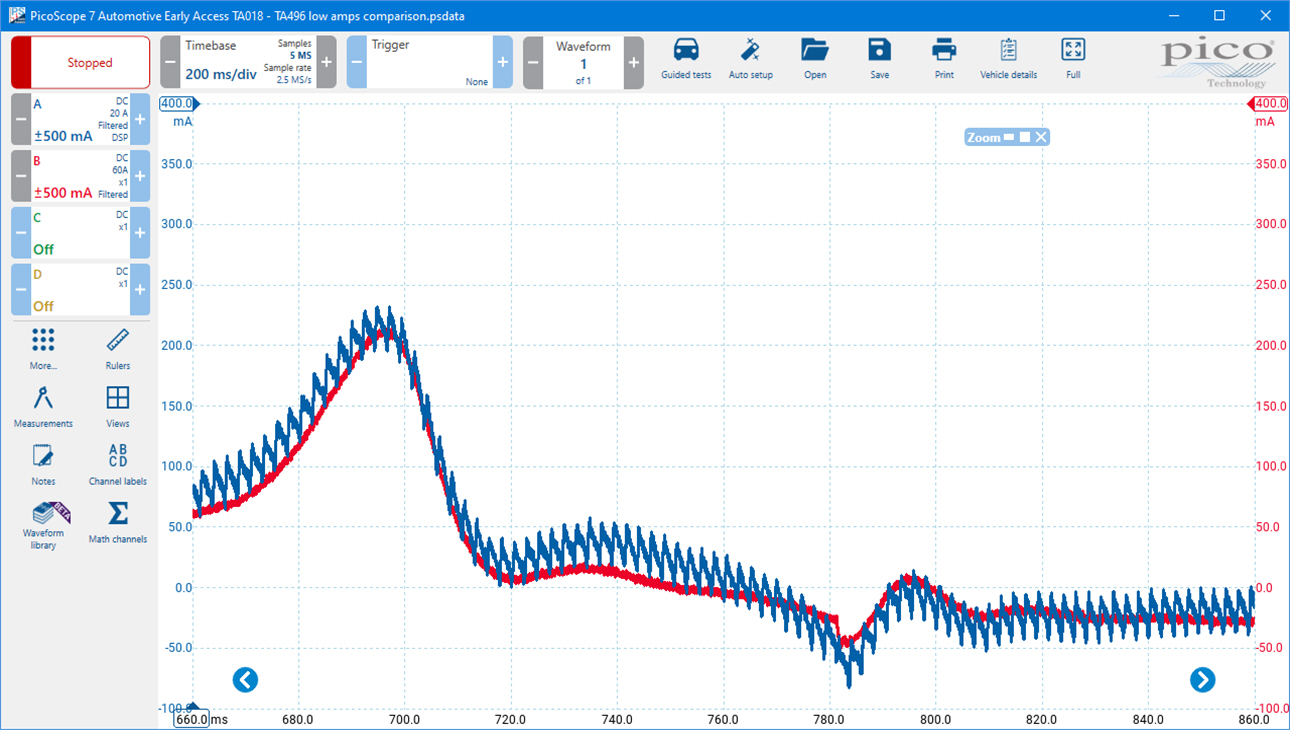

Below, comparison of waveforms from TA018 (blue) and TA496 (red) current clamps.



Electrical characteristics
Current measurement ranges Two ranges: ±10 A peak, ±60 A peak
Frequency range DC to 40 kHz (−3 dB)
Power control Power on when PicoBNC+ is connected
Resolution 5 mA (with 20 kHz scope hardware filter and 500 Hz software filter)

DC accuracy
At 23 °C ± 5 °C, 70 %RH maximum
When used with a PicoScope
4225A or 4425A oscilloscope

0 to 60 A: ±4% of reading ± 630 mA
0 to 50 A: ±4% of reading ± 630 mA
0 to 20 A: ±2% of reading ± 190 mA
0 to 10 A: ±2% of reading ± 65 mA
0 to 5 A: ±2% of reading ± 35 mA
0 to 2 A: ±2% of reading ± 20 mA
0 to 1 A: ±2% of reading ± 20 mA
0 to 0.5 A: ±2% of reading ±20 mA
Zero offset adjustment Automatic on connection to PicoScope.
Manual button in software.
Coupling to PicoScope AC/DC, selectable in software.
Filtering 20 kHz hardware lowpass filter in PicoScope. Enabled by default, selectable by user.
Remanence (0 A—60 A—0 A) 300 mA typical
Working voltage CAT II 300 V, pollution degree 2

General characteristics
Maximum conductor diameter mm (0.35")
Output connection PicoBNC+®
Cable length 2.85 m (9' 4")
Dimensions 167 mm x 68 mm x 26 mm (6.6" x 2.7" x 1.0")
Weight 0.25 kg (8.8 oz)

Environmental
Operating temperature range 0 to 50 °C
Storage temperature range −20 to +70 °C
Operating humidity 70 %RH, max., noncondensing
Storage humidity 80 %RH, max., noncondensing

Compliance
Safety EN 61010-1, EN 61010-2-032
Environmental RoHS, WEEE
EMC CE, FCC, UKCA
