Our hard plastic carrying case has been upgraded to a updated version.
What is the uActivate®?
The uActivate is a time-saving convenience tool designed to simplify relay circuit performance testing through the relay socket. It can also be used for other circuit testing situations!
The uActivate® works in place of the relay, acting as a test breakout box allowing the user to activate the circuit at will. Works with standard 4 and 5 terminal relay circuits.
- Can also be used in series with most other circuits rated for 25A or less (using the Universal Cable).
- Test points via 4mm safety banana socket for 85, 86, 87, 87a, and 30.
- Provides amperage loop for quick connection of inductive amp clamps.
- A quick test using LEDs to indicate the presence of voltage, polarity, and continuity throughout the circuit.
- Direct install cables that fit into relay socket including 4 and 5 terminal ISO 280, Micro ISO, and Mini ISO.
- Custom direct fit cables available – for example, custom BMW configurations.
- Universal cable that allows for custom terminal blade combinations and pin arrangements.
- Built in auto resetting fuse to protect the uActivate and relay circuit.
The uActivate® Master kit includes both the 4- and 5-pin cable sets, and the Universal Cable.
The 4- and 5- pin cables connect to the most commonly used relays including ISO Mini, ISO MICRO and ISO MICRO 280. To top it off, the 5-pin universal cable offers maximum connection versatility when dealing with solid-state, latching and odd relays/circuits that have unique pin assignments.
Custom cables are also available to meet your exact relay circuit testing needs. See the cables we already make here: https://uactivate.aeswave.com/collections/custom-cables or email us at [email protected] to talk about making one for your application.
We consider uActivate® with 4-pin Cable Kit as the getting started kit. It includes the three most popular 4-pin cables.
If you own the original uActivate 4, the old 4-pincables will work with the new uActivate 5-pin.
To add the ability to do 5-pin testing consider adding the 5-pin Universal Cable kit.

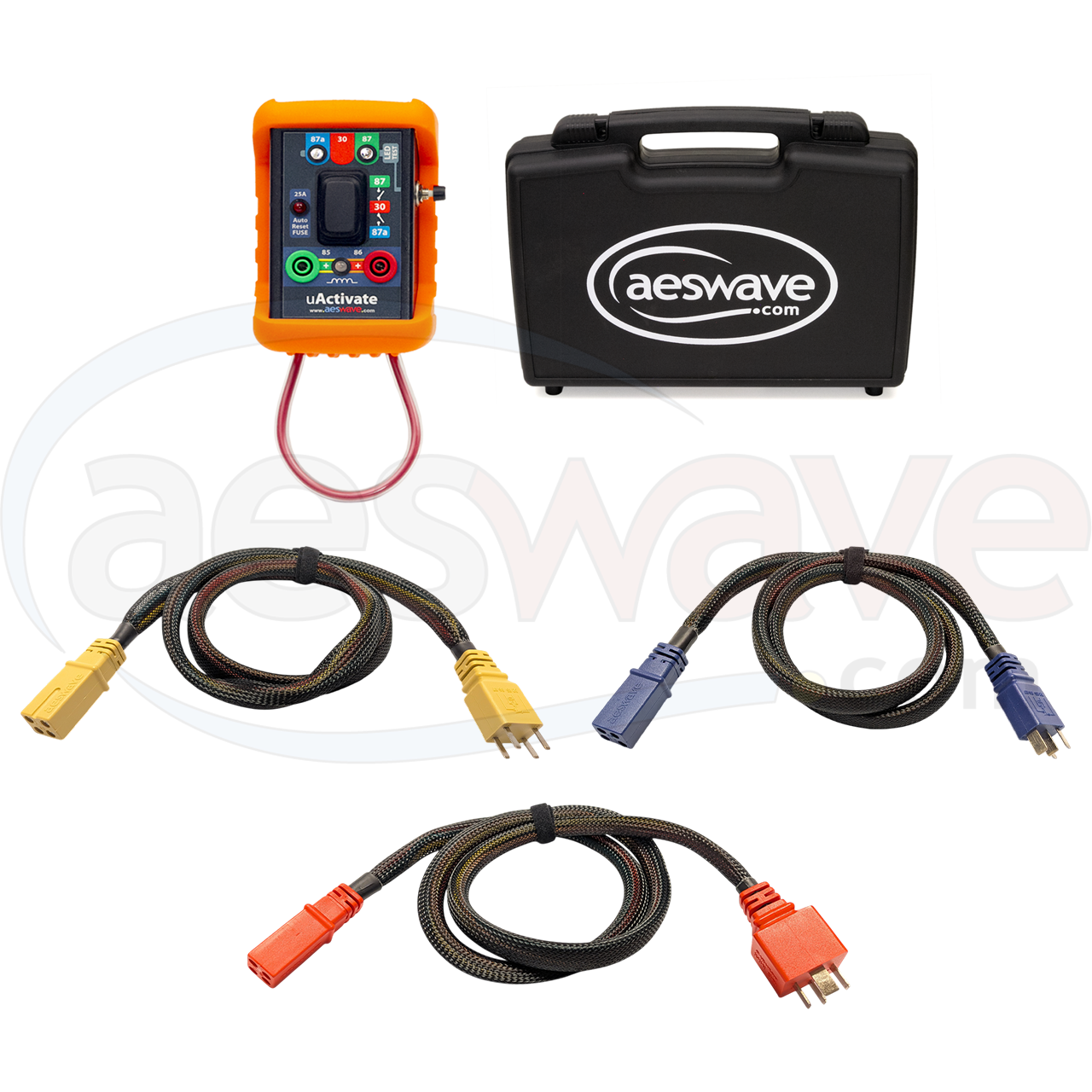

Contents
• uActivate® unit

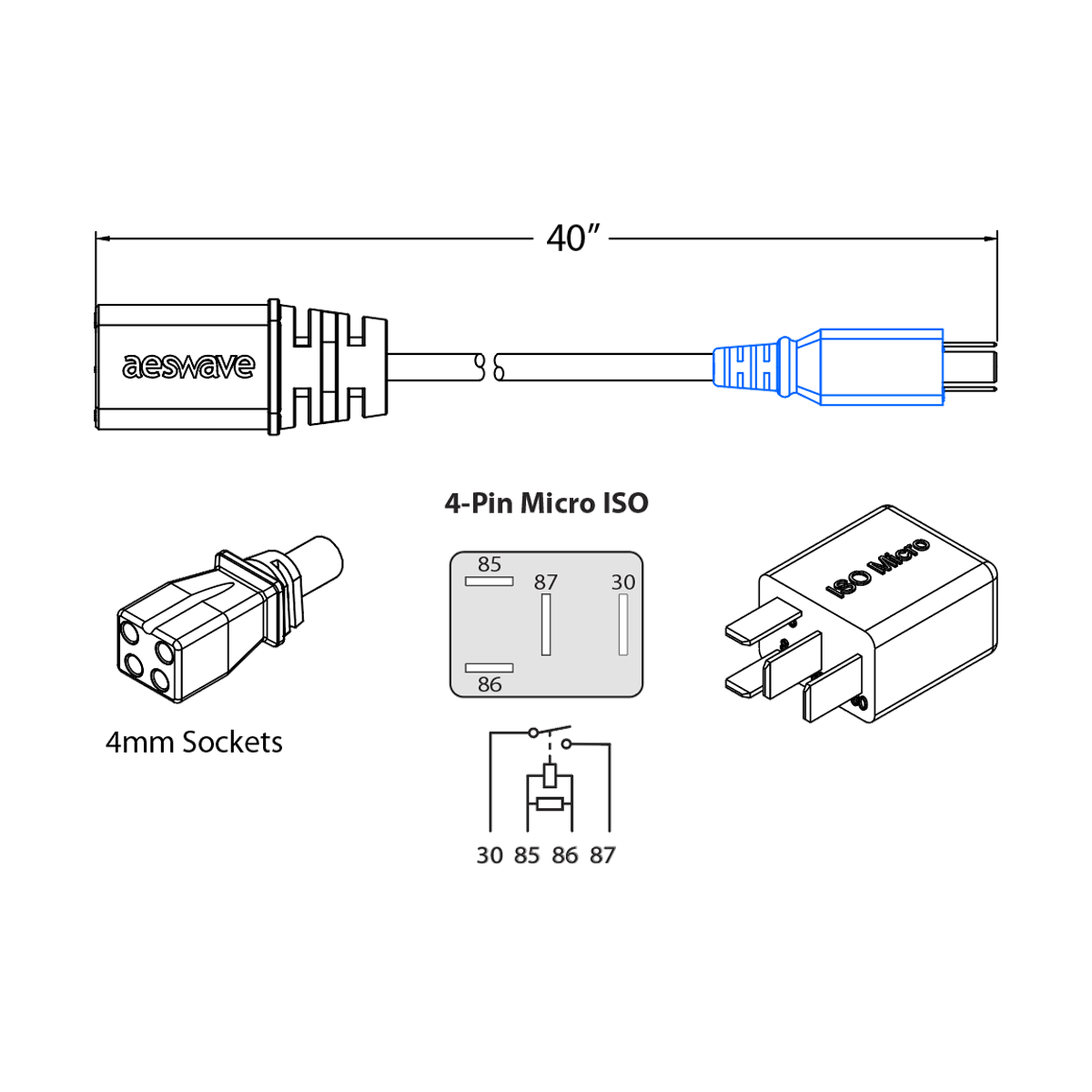

• 4-pin cable ISO Micro (Blue)

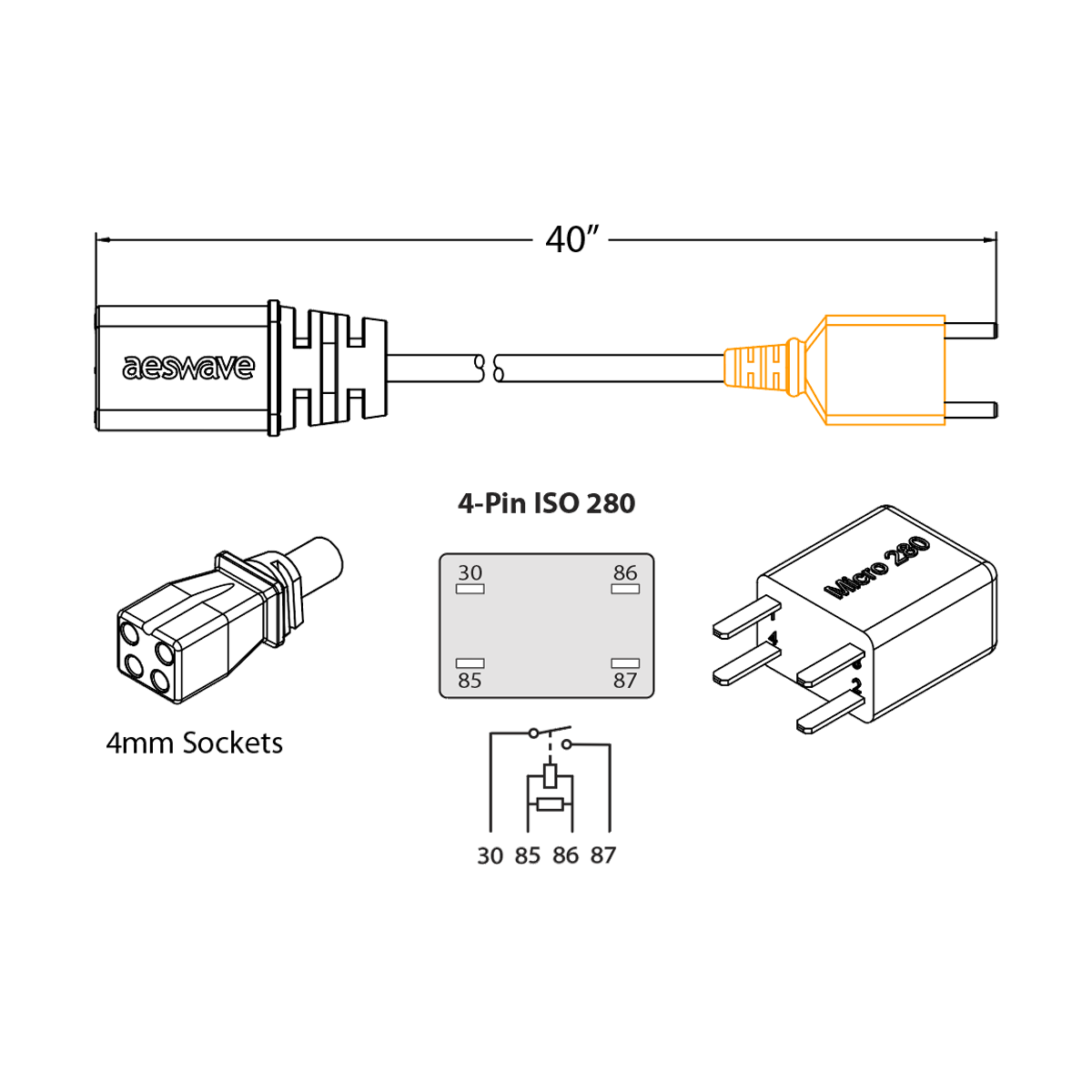

• 4-pin cable ISO Micro 280 (Orange)

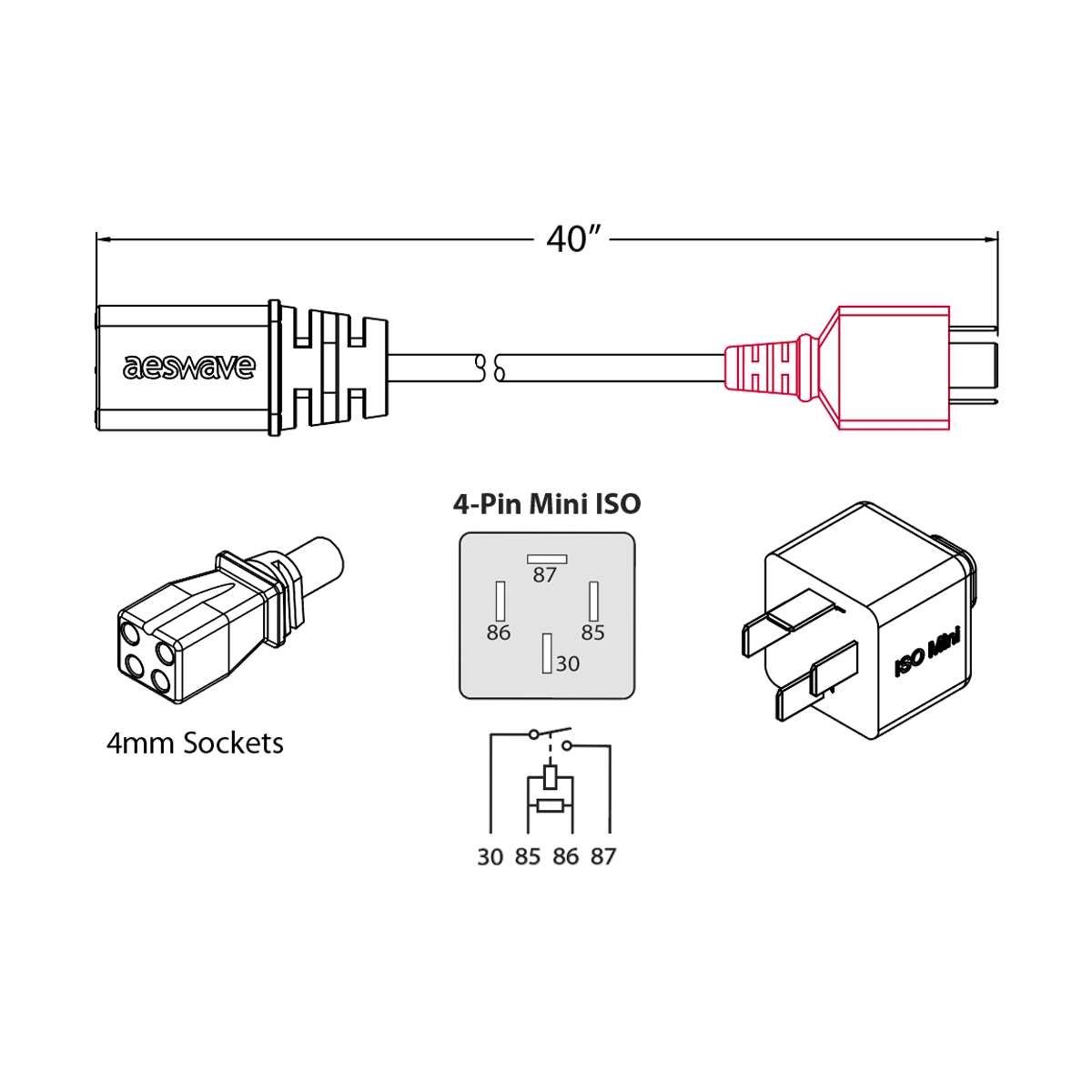

• 4-pin cable ISO Mini (Red) (TYPE B)
• Hard Plastic Case
• 1-year Warranty
